drylin® tandem toothed belt axis
Thanks to the double belt, the ZLWT tandem toothed belt axis is ideal if several linear carriages need to be moved quickly and independently of each other. The motors can be mounted on one side or on both sides. A parallel synchronous drive is also possible.
- Addition to the tandem toothed belt axis installation size 10/20
- Compact tandem toothed belt axis with two toothed belts in one unit
- Two carriages can be controlled synchronously or separately
- With drylin W exchange bearings for fast bearing exchange on the rail
- Can be supplied ready-to-connect with igus electric motors and drylin D1 dryve motor control system
Typical application areas: automation, robotics, assembly cells, painting systems
| Part No. | max. stroke length [mm] | Transmission [mm/rev] | Tooth profile | Toothed belt material | Toothed belt tension [N] | [kg] | Weight (per 100mm) [kg] | |
|---|---|---|---|---|---|---|---|---|
| ZLWT-10160 | 2000 | 75 | 3M | Neoprene with fibre glass | 200 | 4.0 | 0.25 | Request |
| ZLWT-10200 | 2000 | 75 | 3M | Neoprene with fibre glass | 200 | 4.5 | 0.30 | Request |
| ZLWT-20200 | 3000 | 144 | 8M | PU with stainless steel | 750 | 11.0 | 0.50 | Request |
| ZLWT-20300 | 4000 | 144 | 8M | PU with stainless steel | 750 | 12.5 | 0.65 | Request |
| Part No. | A | AI | H | E2 | E3 | E4 | C4 | f | lt | ha | lz | l | d2 H7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZLWT-10160 | 193 | 150/200/250 | 40 | 180 | Al-13 | 90 | 240 | 1 | 74 | 18.0 | 18 | 448 | 10 |
| ZLWT-10200 | 233 | 150/200/250 | 40 | 220 | Al-13 | 120 | 240 | 1 | 74 | 18.0 | 18 | 448 | 10 |
| ZLWT-20200 | 252 | 200/250/300/350 | 63 | 234 | Al-18 | 120 | 240 | 1 | 98 | 28.5 | 27 | 596 | 14 |
| ZLWT-20300 | 352 | 200/250/300/350 | 63 | 334 | Al-18 | 200 | 240 | 1 | 98 | 28.5 | 27 | 596 | 14 |
| Part No. | d3 | g3 | D | K for DIN912-M6 | at | lt2 | lu | V [mm/rev] Standard |
|---|---|---|---|---|---|---|---|---|
| ZLWT-10160 | 38 | M4 | 10 | M6 | 107 | 59 | 20 | 75 |
| ZLWT-10200 | 38 | M4 | 10 | M6 | 107 | 59 | 20 | 75 |
| ZLWT-20200 | 60 | M5 | 20 | M8 | 122 | 78 | 40 | 144 |
| ZLWT-20300 | 60 | M5 | 20 | M8 | 122 | 78 | 40 | 144 |
Delivery time
5-8 days
The drylin® ZLWT linear axes have been tried and tested
The robust construction with lubrication-free drylin® W linear plain bearings ensures a long service life and maintenance-free operation. This was confirmed in the igus test lab.
ZLWT - tested and proven: 400,000 cycles with no maintenance
- Motor: igus EC direct-current motor and gearbox
- Load: 1,500N
- Stroke: 1,500mm
- Speed: 0.3m/s
- Customer specification: 400,000 cycles
- Test end: 412,654 cycles
- Target reached: YES
Electric drive systems
Suitable NEMA stepper motors and DC motors

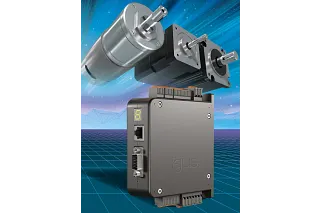

Whether DC or NEMA stepper motors: with its wide-ranging motor shop, igus offers the possibility of equipping linear axis systems with the appropriate motor solutions. Complete positioning systems can be configured in combination with drylin linear axes, which can be ordered completely ready for installation and connection. With the powerful motors you solve a wide variety of problems in the electric drive technology. For controlling motors, igus offers the high-performance D1 dryve and D3 dryve motor control systems.
Liners replaced in 30 seconds
Quick change – smart and time-saving

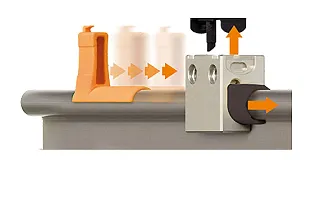

With the innovative WJ200UMA-01-AL pillow block from the drylin® W product range, it is possible to replace the plain bearing liner even more easily without complicated disassembly work being required.
The tool supplied makes it possible to exchange the plain bearing liner within seconds. This saves valuable time and costs!
