SLW-0620 linear actuator for the smallest installation spaces
... small and strong ...

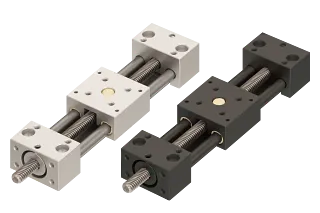

Our new small linear actuator impresses with two different colors: choose between the silver or black look (anti-reflect).
The linear actuator consists of a torsion-resistant drylin® W double rail WS-06-20, a robust linear carriage and aluminum trusses. For manual and electrical adjustment, you can order suitable controls or ready-to-connect drylin® E electric motors in our online shop.
Tech up
- Efficient and quiet operation due to dryspin® high helix thread
- Save valuable installation space
Cost down
- Space-saving design requires less installation space and helps reduce costs
- Ready-to-install with millimetre-precise stroke length and required accessories
Proof
- dryspin® high helix thread DS6.35x2.54, axial force 200N, stroke length 150mm, speed 150RPM: service life 21,984 double strokes
- High helix thread with 6.35mm diameter
- Up to 24.4mm feed rate per rotation
Sustainability
- drylin® W linear guide and dryspin® lead screw technology are 100% lubrication-free and maintenance-free
Video
Technical Govie
Technical data
| Part number | A -0.3 [mm] | Al -0.3 [mm] | H [mm] | E1 ± 0.15 [mm] | E2 ± 0.15 [mm] | E3 ± 0.15 [mm] | E5 ± 0.15 [mm] | E6 ±0.15 [mm] | tg2 | t2 [mm] | lb [mm] | lt ± 0.1 [mm] | tk [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLW-BB-0620-FL, SLW-BB-0620-FL-, AR | 32 | 32 | 20 | 22 | 15 | 15 | 11 | 23 | M3 | 5.5 | 10 | 19 | 6.5 |
| Part number | tg | kt [mm] | st [mm] | sg | d [mm] | T | I2 | d2 standard | ha [mm] | l [mm] | hw [mm] | f [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLW-BB-0620-FL, SLW-BB-0620-FL-, AR | M4 | 4 | 5 | M3 | 6 | DS 6.35x (1, 2.54, 5.08, 6.35) | 17 | DS 6.35x (1, 2.54, 5.08, 6.35) | 10.25 | 70 | 17.75 | 1.75 |
Technical drawing
