Crossbar and interior separation for the E6.1 6 and E6 series
More stable and even more abrasion-resistant for greater cleanroom suitability

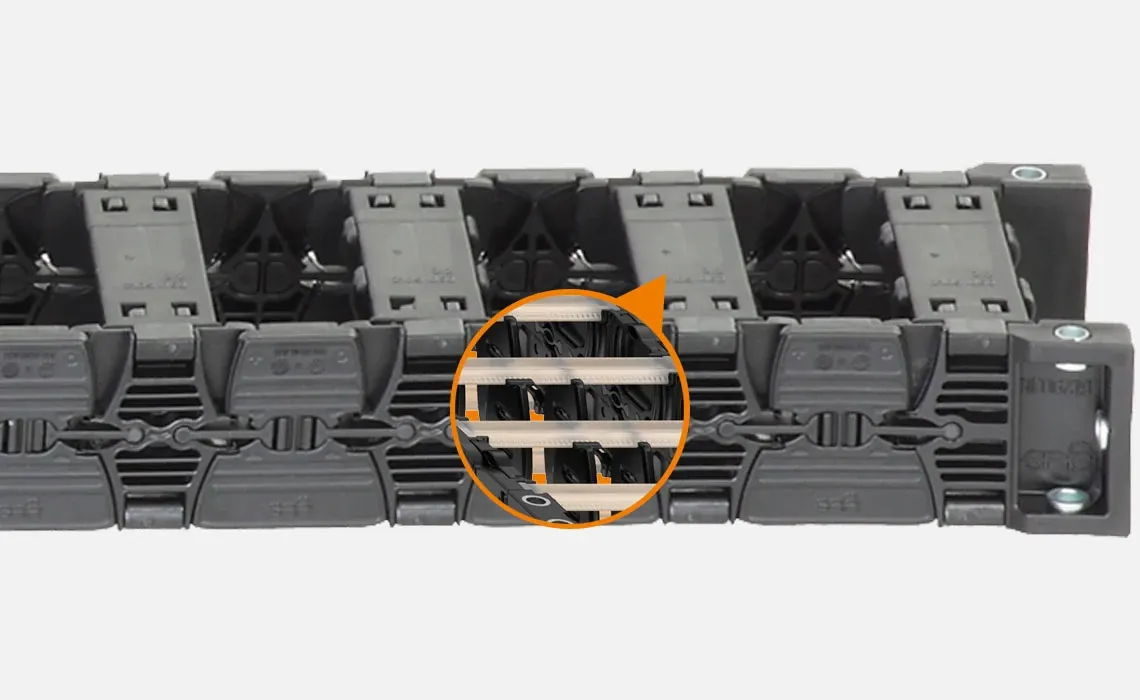

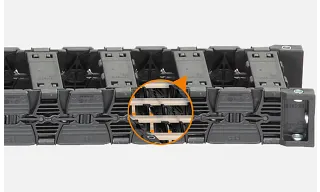

New crossbar
A new tribo-material makes it possible: the crossbars consisting of two injection-moulded components reduce the abrasion of the E6 and E6.1 cleanroom chains even more.
This question came from a big customer in the semiconductor industry: can the abrasion of the E6 cleanroom chain be reduced even more? The answer: yes - with a new guide bar optimised for less abrasion And with a clever "division of labour" between the inner and outer materials.
Tech up
- Newly developed, cleanroom compatible tribo-plastic
- igulen CR1 significantly reduces abrasion of the cables
- Easy to assemble and to retrofit
- Ease of assembly
Cost down
- Longer service life of the cables due to reduced jacket abrasion
- Quick to retrofit, an upgrade for higher cleanroom suitability
- Reduced maintenance effort
Proof
- igus igulen CR1 material produces 89% less abrasion
than the igus standard material
Sustainability
- Resource conservation due to long service life
- Have your energy chains recycled as part of the igus chainge Recycling Program at the end of their life cycle. Irrespective of the manufacturer. You can receive a chainge recycling program voucher
Product range:
| Part No. | Suitable for | Width | |
|---|---|---|---|
| 2105.BBB.CR1 | Crossbar suitable for the E6.29/E61.29/E6.35/E61.35 ranges | 030 - 140 mm | Submit an enquiry now |
| 225.BBB.CR1 | Crossbar suitable for the E6.40/E61.40/E6.52/E61.52 ranges | 040 - 300 mm | Submit an enquiry now |

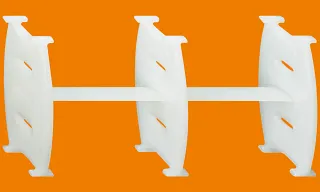

New interior separation
Reduce abrasion further
A new cleanroom material is used for the new interior separation system of the E6 cleanroom chain. Sometimes, it is the details that bring about crucial improvements. A new interior separation system increases the abrasion-resistance of the E6 and E6.1 cleanroom energy chains even more
Product range:
| Part No. | Suitable | Width BBB | |
|---|---|---|---|
| E6.29.1.CR1 | Separator suitable for the E6.29/E61.29 ranges | - | Submit an enquiry now |
| E6.35.1.CR1 | Separator suitable for the E6.29/E61.35 ranges | - | Submit an enquiry now |
| E6.40.1.CR1 | Separator suitable for the E6.29/E61.40 ranges | - | Submit an enquiry now |
| E6.52.1.CR1 | Separator suitable for the E6.29/E61.52 ranges | - | Submit an enquiry now |
| 2300.BBB. CR1 | Shelf suitable for all E6.20-52 ranges | 030 - 300 mm | Submit an enquiry now |
