Series E6.62

Energy chain E6.62 series
igus-icon-lupe

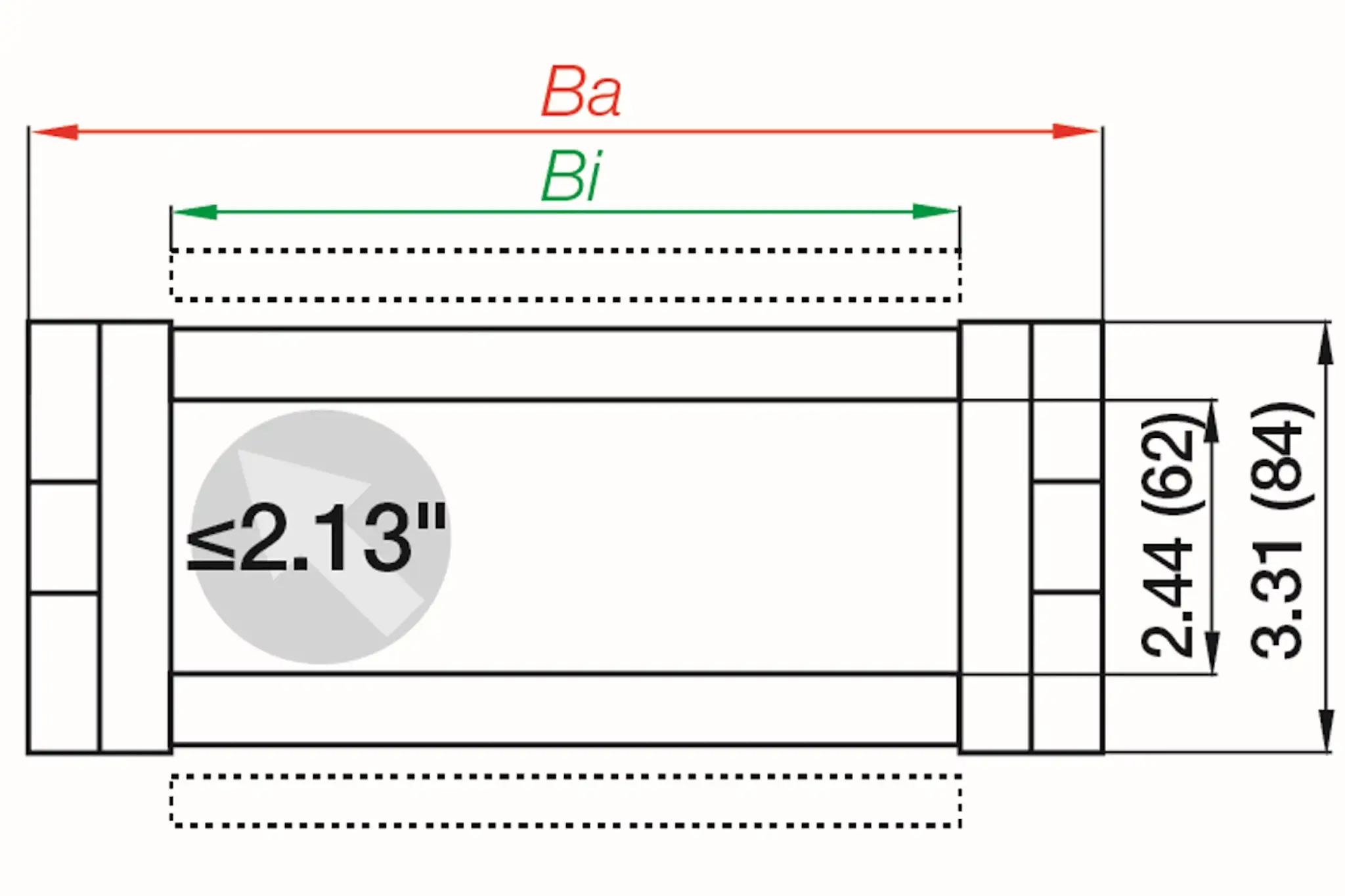

E6.62.05.115.0 technical drawing
igus-icon-lupe
E6.62.05.115.0 technical drawing
igus-icon-lupe
E6.62.05.115.0 technical drawing
igus-icon-lupe
1 of 4
Energy chain E6.62 series
Series E6.62
Series E6.62
Series E6.62
igus-icon-arrow-left
igus-icon-arrow-right
Inner height [Hi]
Inner height [Hi]
2.44 in (62 mm)
Max. cable diameter
Max. cable diameter
2.13 in (54 mm)
Opening principle
Opening principle
Can be opened along the inner and outer radius
Inner width [Bi]
Inner width [Bi]
1.97 in (50 mm)
Bending radius [R]
Bending radius [R]
4.53 in (115 mm)
