Series E6.35

Energy chain E6.35 series
igus-icon-lupe

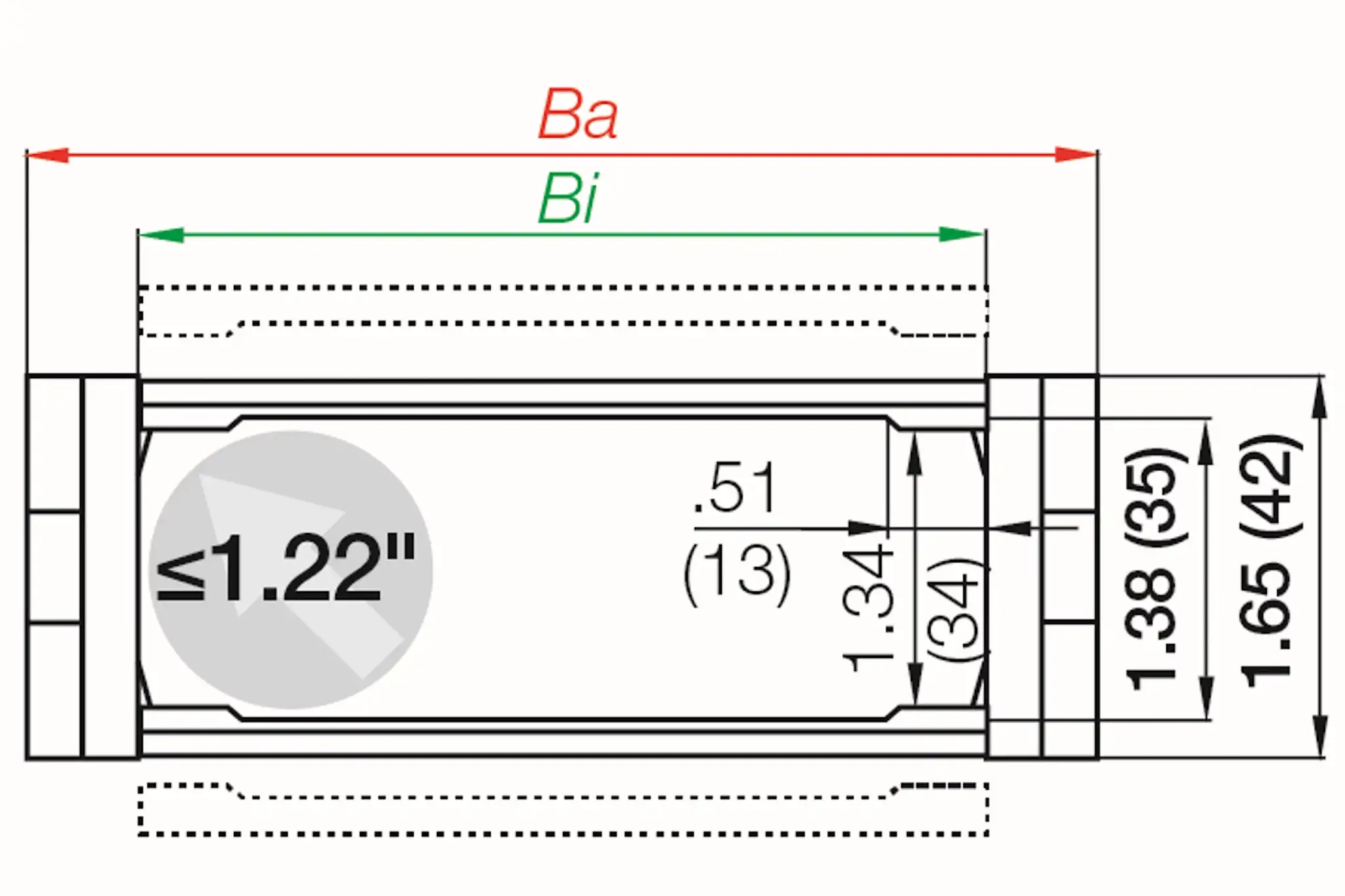

E6.35.030.055.0 technical drawing
igus-icon-lupe
E6.35.030.055.0 technical drawing
igus-icon-lupe
E6.35.030.055.0 technical drawing
igus-icon-lupe
1 of 4
Energy chain E6.35 series
Series E6.35
Series E6.35
Series E6.35
igus-icon-arrow-left
igus-icon-arrow-right
Inner height [Hi]
Inner height [Hi]
1.38 in (35 mm)
Max. cable diameter
Max. cable diameter
1.22 in (31 mm)
Opening principle
Opening principle
Can be opened along the inner and outer radius
Inner width [Bi]
Inner width [Bi]
1.18 in (30 mm)
Bending radius [R]
Bending radius [R]
2.17 in (55 mm)
