Series E3.15

Energy chain E3.15 series
igus-icon-lupe

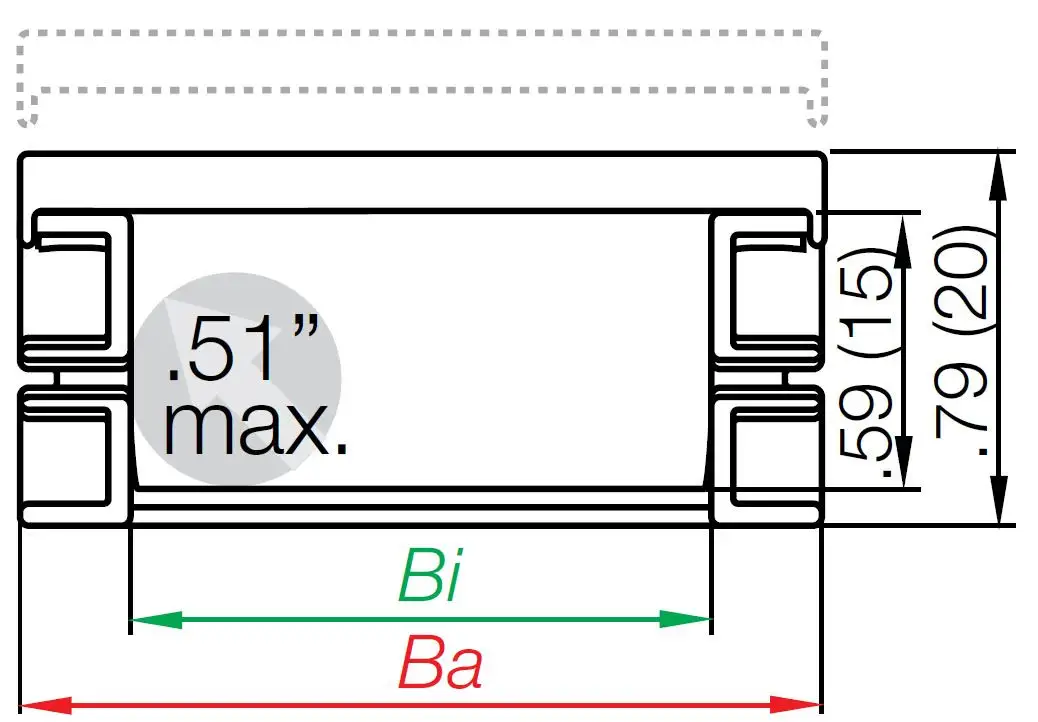

E3.15.020.032.0 technical drawing
igus-icon-lupe
E3.15.020.032.0 technical drawing
igus-icon-lupe
E3.15.020.032.0 technical drawing
igus-icon-lupe
1 of 4
Energy chain E3.15 series
Series E3.15
Series E3.15
Series E3.15
igus-icon-arrow-left
igus-icon-arrow-right
Inner height [Hi]
Inner height [Hi]
0.59 in (15 mm)
Max. cable diameter
Max. cable diameter
0.51 in (13 mm)
Opening principle
Opening principle
Openable from outer radius
Inner width [Bi]
Inner width [Bi]
0.79 in (20 mm)
Bending radius [R]
Bending radius [R]
1.26 in (32 mm)
