Series E2.10

Energy chain E2.10 series
igus-icon-lupe

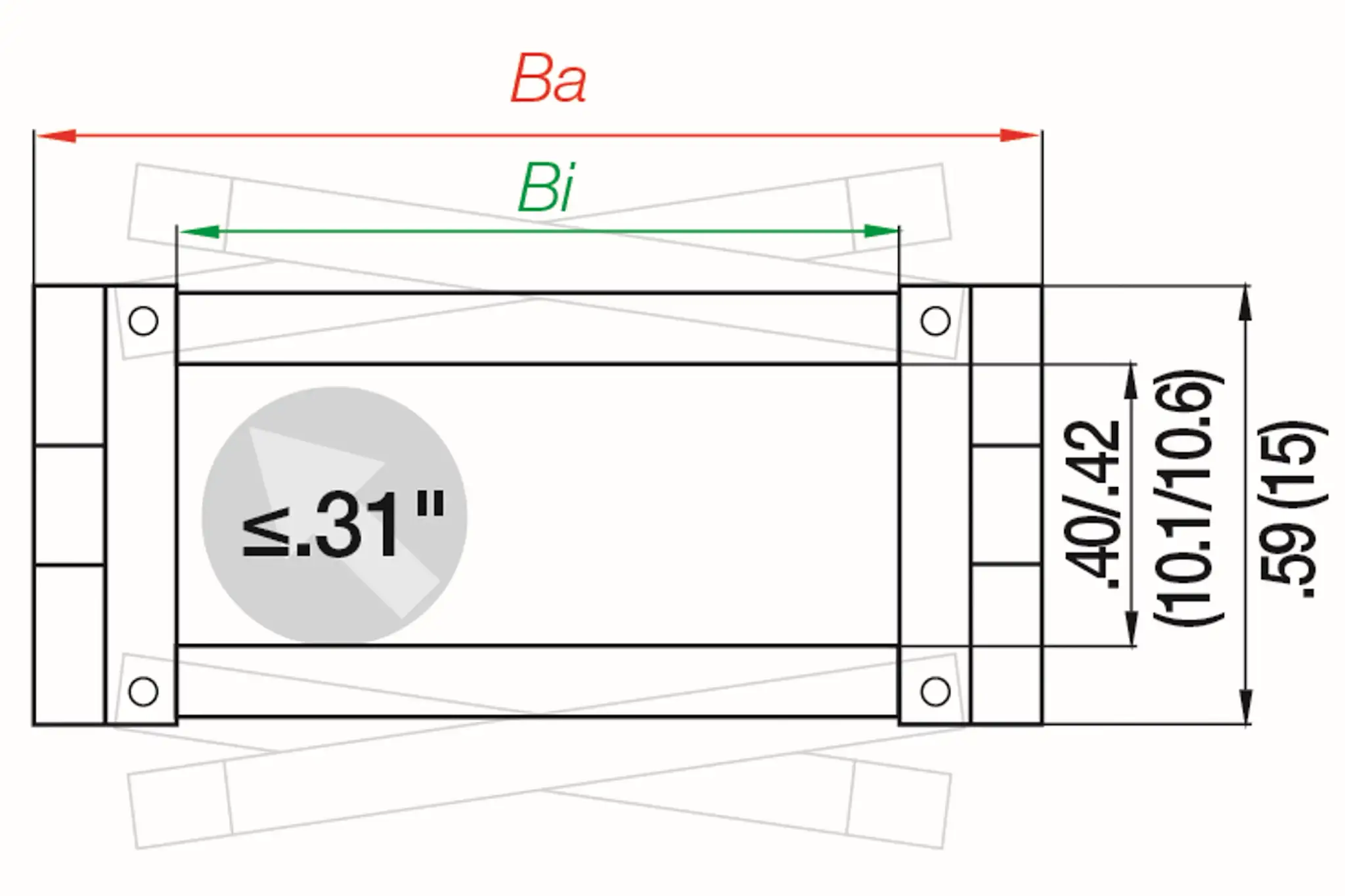

E2.10.06.018.0 technical drawing
igus-icon-lupe
E2.10.06.018.0 technical drawing
igus-icon-lupe
E2.10.06.018.0 technical drawing
igus-icon-lupe
1 of 4
Energy chain E2.10 series
Series E2.10
Series E2.10
Series E2.10
igus-icon-arrow-left
igus-icon-arrow-right
Inner height [Hi]
Inner height [Hi]
0.39 in (10 mm)
Max. cable diameter
Max. cable diameter
0.31 in (8 mm)
Opening principle
Opening principle
Openable from outer radius
Inner width [Bi]
Inner width [Bi]
0.24 in (6 mm)
Bending radius [R]
Bending radius [R]
0.71 in (18 mm)
