Series 11.031

Energy chain 11.031 series
igus-icon-lupe

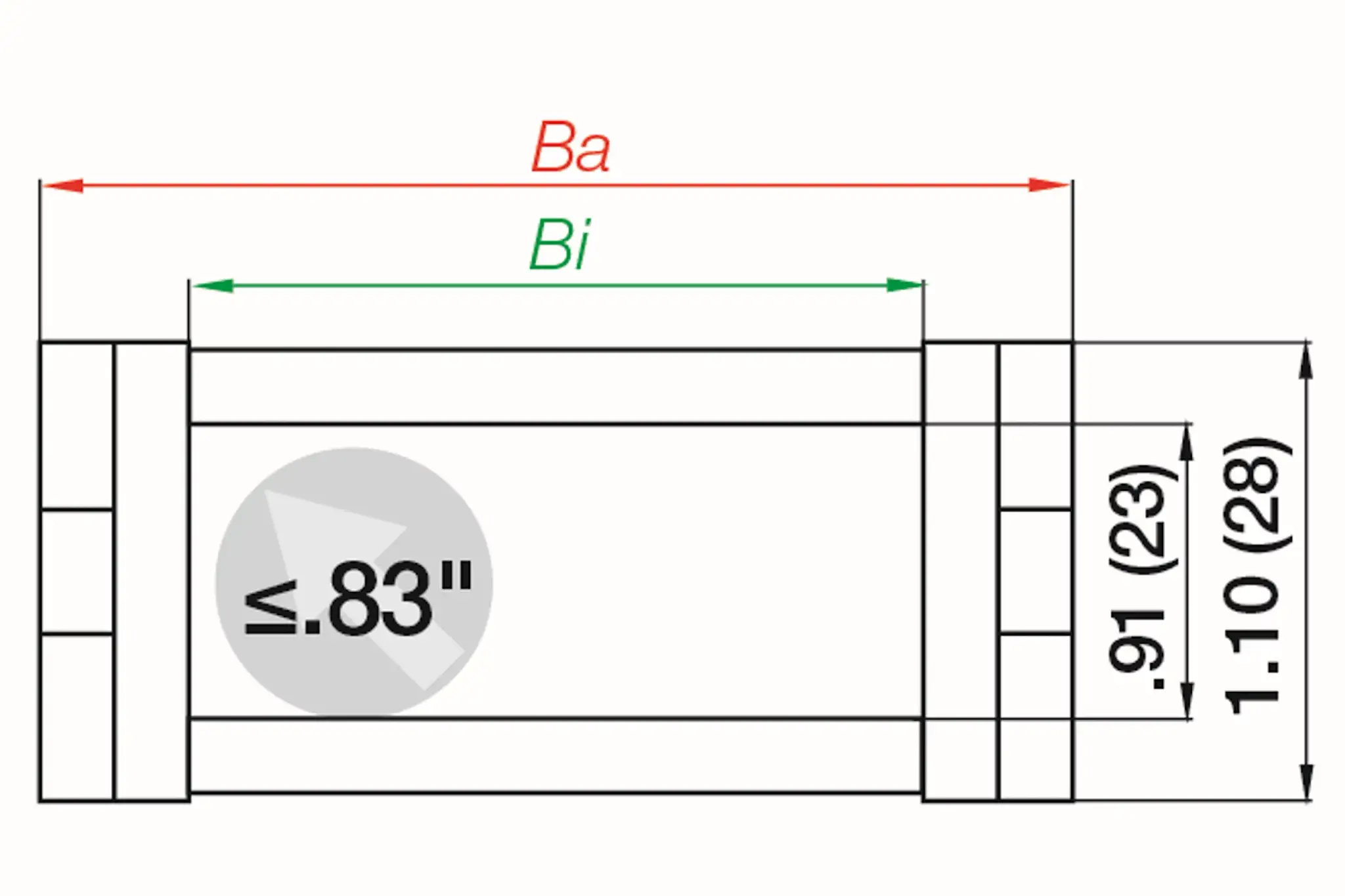

11.031.045.A technical drawing
igus-icon-lupe
11.031.045.A technical drawing
igus-icon-lupe
11.031.045.A technical drawing
igus-icon-lupe
1 of 4
Energy chain 11.031 series
Series 11.031
Series 11.031
Series 11.031
igus-icon-arrow-left
igus-icon-arrow-right
Inner height [Hi]
Inner height [Hi]
0.91 in (23 mm)
Max. cable diameter
Max. cable diameter
0.83 in (21 mm)
Opening principle
Opening principle
Non-openable
Inner width [Bi]
Inner width [Bi]
1.22 in (31 mm)
Bending radius [R]
Bending radius [R]
1.77 in (45 mm)
