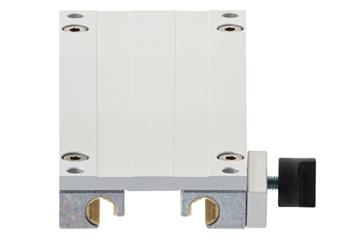

drylin® W one-piece mono carriage WWC

  • Fast and easy installation
  • No alignment
  • Robust, hard-anodised aluminium
  • Different installation sizes
  • Design: square
  • Material sliding element: iglide® J
  • Material: Aluminum
Product description
Easy installation, no alignment
With the WWC mono-slide carriage the easy assembly of the drylin W linear carriages is made even easier. No individual pillow blocks due to anodised aluminium carriages.

Tech up:
  • Extremely fast assembly of drylin® W linear carriage on drylin® W double rails
  • Monobloc made of aluminium for robust handling
  • Suitable for drylin® W profile rail WSQ-06-60
  • Sliding elements made from iglidur® J for long-lasting operation
  • In three lengths, available ready-to-install: 60/80/100mm
Cost down:
  • Save installation time with a ready-to-install design
  • No mounting or alignment
  • Save storage space - one component instead of nine (for standard linear carriages)
  • Reduced design effort with PDF and CAD file available in the online shop
Proof:
  • 12% lower installation height than standard
  • Corrosion-resistant thanks to clear anodising
  • Tested: WWC carriage, installation size 06, load 80N, acceleration 3m/s², rail length 2,000mm, running performance 5,000km or 2.5 million double strokes of 1,000mm each
Sustainability:
  • Lubrication-free operation
  • Maintenance-free due to self-lubricating high-performance polymers from igus®
  • Lightweight components such as plastic and aluminium
Technical data
Accessories
Downloads

Application Assistance
