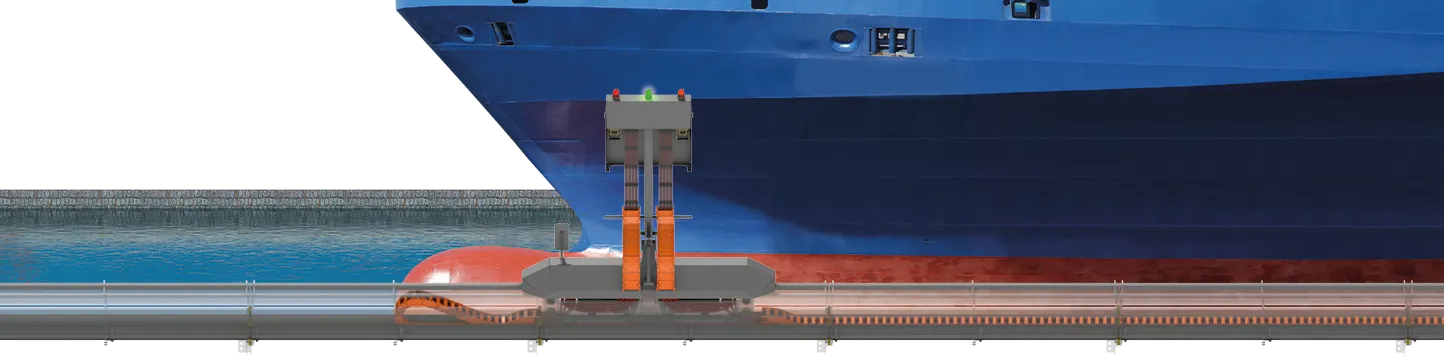

readychain® iMSPO:</br>movable shore power system</br>for container terminals

What is the readychain iMSPO?
The term iMSPO stands for igus® Mobile Shore Power Outlet and is a self-propelled socket for shore power connection of container ships. The system is positioned at the berth and installed on the quay above the fender system. You will receive a ready-to-connect and final-tested readychain® assembly for shore power connection of ships.

The system complies with the following standards and guidelines:

  • IEC 80005-1, Annex D - 6.6kV, 7.5MVA,
  • EU Machinery Directive 2006/42/EC,
  • corrosion protection class C5-M,
  • and IP67 protection class.
Container ships infographic for iMSPO

Flexible availability of the readychain® iMSPO at the berth

What distinguishes the readychain® iMSPO?
The combination of igus roller energy chain and special chainflex medium-voltage cables enables the system to travel on port sections with up to 400 metres length. Due to the small bend radii of the chainflex medium-voltage cables, the system can be compactly designed and installed in a space-saving way.

Therefore, shore power is available over the entire berth. Regardless of the different ship sizes, the connection is always positioned where it is needed, based on the berthing position of the ship. The iMSPO is conveniently operated with a remote control.

Test laboratory iMSPO in Cologne

The test facility for the iMSPO in Cologne.

Not only developed, also extensively tested!
The development of the igus shore power systems continuously incorporates the experience gained from successfully completed projects. The close cooperation with our customers, enables us to map the conditions and requirements on the igus test field as realistically as possible. Every module and system undergoes intensive tests at the igus test facility for function and service life.

Your benefits at a glance

Tech up

Tech up

  • Simple, fast and modular supply of shore power for ships, regardless of the mooring position
  • Compact system: There is no additional equipment in the working area during positioning and active power supply
  • Ergonomically better connection of the ship cables
  • Integrated safety interlocking procedure
Cost down

Cost down

  • One mobile socket versus many fixed sockets = the reduction in number of sockets results in less cabling and ground work and fewer switch panels
  • With a mobile socket = 100% connectivity = faster amortisation of the total investment
  • Future-oriented system with modular and mobile design
Proof

Proof

  • Type test incl. electrical test
  • Designed according to IEC 80005-1, Annex D - 6.6kV, 7.5MVA
  • Meets EU Machinery Directive 2006/42/EC
  • Corrosion protection system according to C5-M
  • IP67 rating for electrical components
Sustainability

Sustainability

  • To "Zero Emission" port with shore power
  • Shutdown of all diesel generators, reduction of pollutant emissions such as particulate matter, nitrogen and sulphur oxides as well as CO2 emissions
  • Energy chains can be recycled during maintenance with the igus chainge programme

And this is how it works: animation of the iMSPO at the harbour

On site at igus: the system during a function test

Application examples with readychain®

MULTISPRINT multi-spindle lathe

Unique supply system enables safe and reliable energy supply

The heart of the MULTISPRINT multi-spindle lathe is the spindle drum with six spindles for simultaneous machining of several workpieces. The drum moves the workpieces to the tools quickly and very precisely. For spindles to return to the starting position after machining has been completed in the six stations, the drum has to turn 300 degrees in reverse. The biggest challenge: a safe energy supply system for all six spindles.

Completely pre-harnessed readychains at delivery

Minutes instead of days: complete solution from igus reduces the assembly time of machining centres

In its robotic machining centres, Taiwanese tool manufacturer Hartford uses fully harnessed energy chain systems from igus.
This makes it possible to cut out many work steps and thus reduce the assembly time from several weeks to a mere half a day. At the same time, customers can always depend on receiving a safe and reliable solution from a single source when they order readychain systems from igus.

Automatic handling of medication: Mach4

Automatic handling of medication: harnessed energy chains ensure 20,000 movements per day

Modular automatic medication picking systems are used for the fast storage and retrieval of medicines in chemists, hospitals or care homes and can be adapted to almost all spatial conditions on site. They must be compact and modular in order to enable problem-free extension and a reliable supply.
The readychain systems can be ideally adapted to circumstances and spatial conditions.

readychain solutions for shore power supply

3,000 shore power connections per year with flexible energy supply systems

The Mongstad offshore base is one of the most frequently used bases in Norway. The ships change twice a day in order to be loaded with equipment for the offshore platforms in the North Sea. The base operates around the clock.
Therefore, a reliable, robust and flexible system for supplying shore power  from igus is used. A harnessed e-spool is integrated in a three-metre long container that can be handled by forklifts to position the system along the various berths.
