EC.PR position-dependent push/pull force measurement

Protect the entire length of travels of up to 1,000m

iSense EC.PR

Avoid system-dependent imprecision for push/pull force monitoring systems on travels longer than 150 m.  System-dependent imprecision due to static force limits for travels > 150m are a thing of the past.  Now there is the new EC. PR module. Here, force limits are dynamically adjusted with information  from PLC control systems, OPC-UA servers, or analogue (4-20 mA) path measurement systems (Profinet /EC. PP). This reduces repair cost and effort; replacing a stacker reclaimer, for example, costs $30,000 or more.

Contact an igus® expert now
Tech up

Tech up

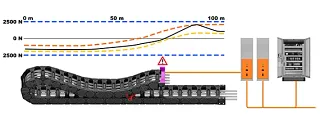

  • Position-dependent reduction of maximum push/pull force limits at which the system is shut down – freely
    defined for each point along the travel.
  • Position information via additional modules from Siemens PLC, OPC-UA servers, or analogue or digital path measurement systems.
Cost down

Cost down

  • Avoid unplanned repair costs such as $49,798 or more for replacing a stacker reclaimer.
  • Integration into existing control concepts and switch cabinets
  • Standard strain gauge sensors and load cells can be used in igus® floating moving ends
Proof

Proof

Sustainability

Sustainability

  • For example, save 32kg of CO² emissions for each repair deployment avoided. 2
  • Less raw material required thanks to the option of partial repair instead of complete replacement.
  • More about the igus® contribution to Plastic2Oil

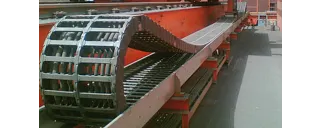

isense EC.PR position-dependent push/pull force measurement

Potential application areas

We have developed iglidur EC.PR for this purpose

  • Long travels > 150m in project business
  • Stacker - reclaimer
  • Automatic cranes

Sample can be delivered within 14 days for BETA TEST projects.  Delivery time for BETA test projects: 14 days

You might also be interested in

energy chains

Energy chain standard product range
Shop with more than 100,000 products.

To the standard product range
Energy chain configurator

Energy chain configurator
Assemble your energy chain system in a few steps.

Go to the configurator
Recycling program

Recycling program
Have energy chains recycled.

Go to recycling program

1* igus® application at Tata Steel in Haldia, India with a travel of 480m and a chain length of 240m was able to avoid a replacement worth about $30,000
2* Randomly chosen Mercedes vehicle built in 2015 with 160 grammes of CO²/km at a randomly defined 100-km departure/arrival
