The new installation size in the drylin® W linear system

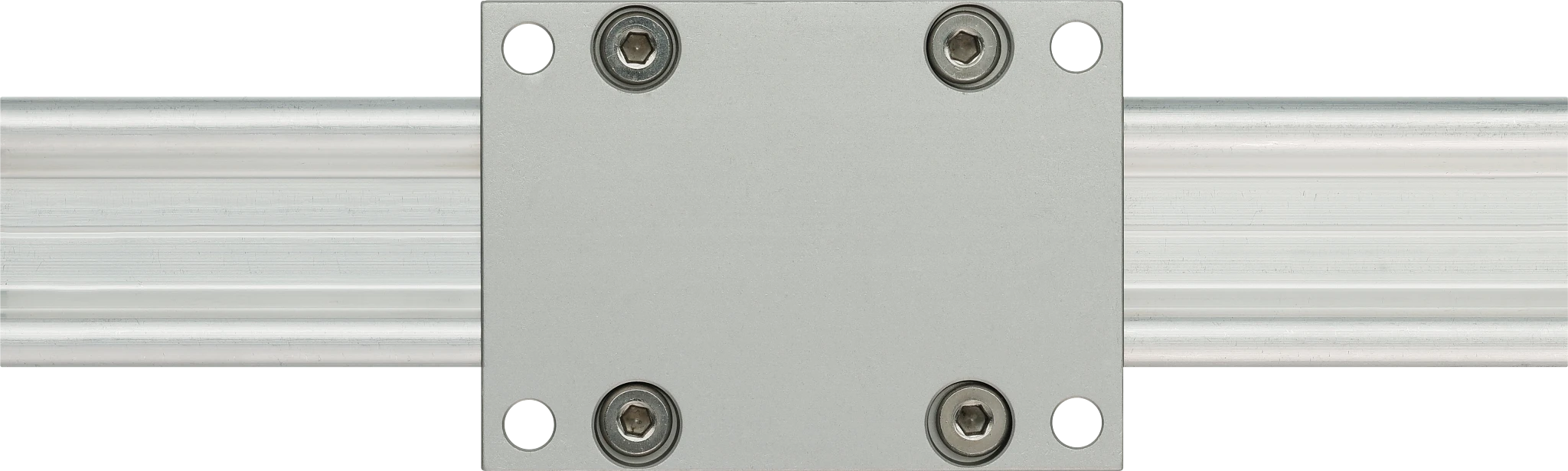

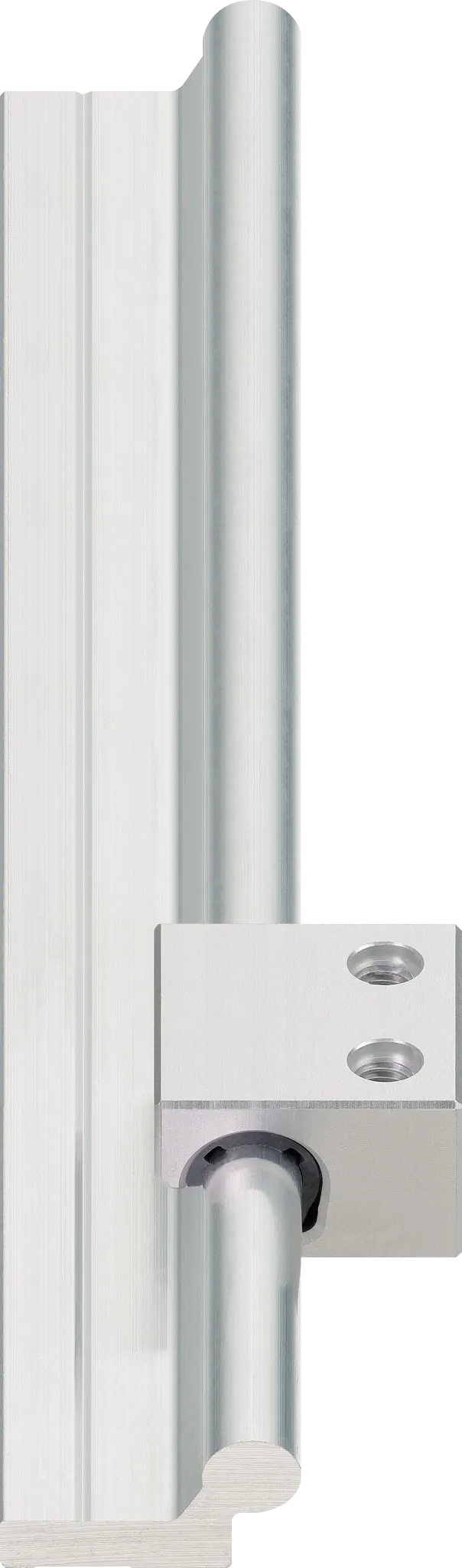

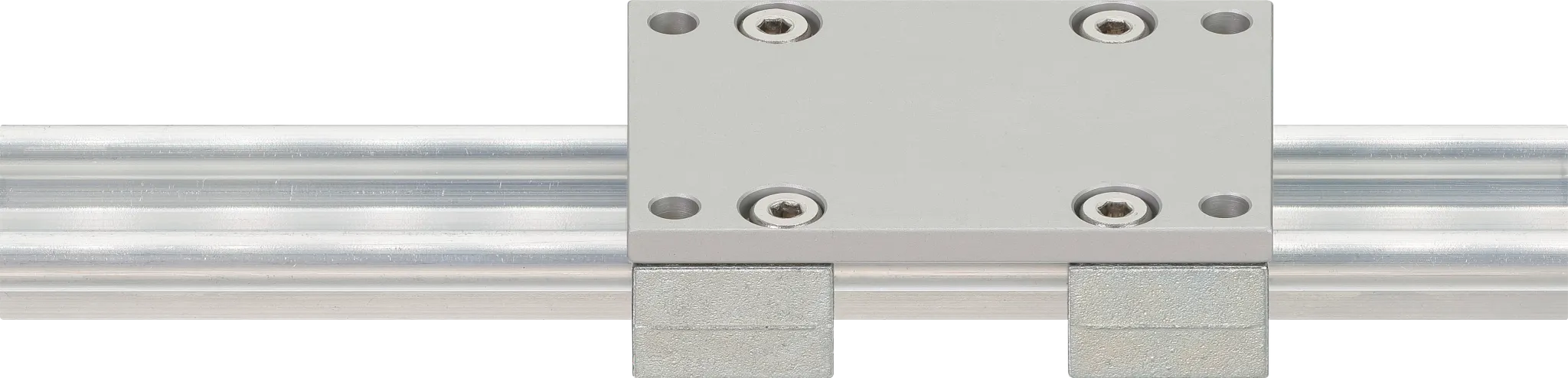

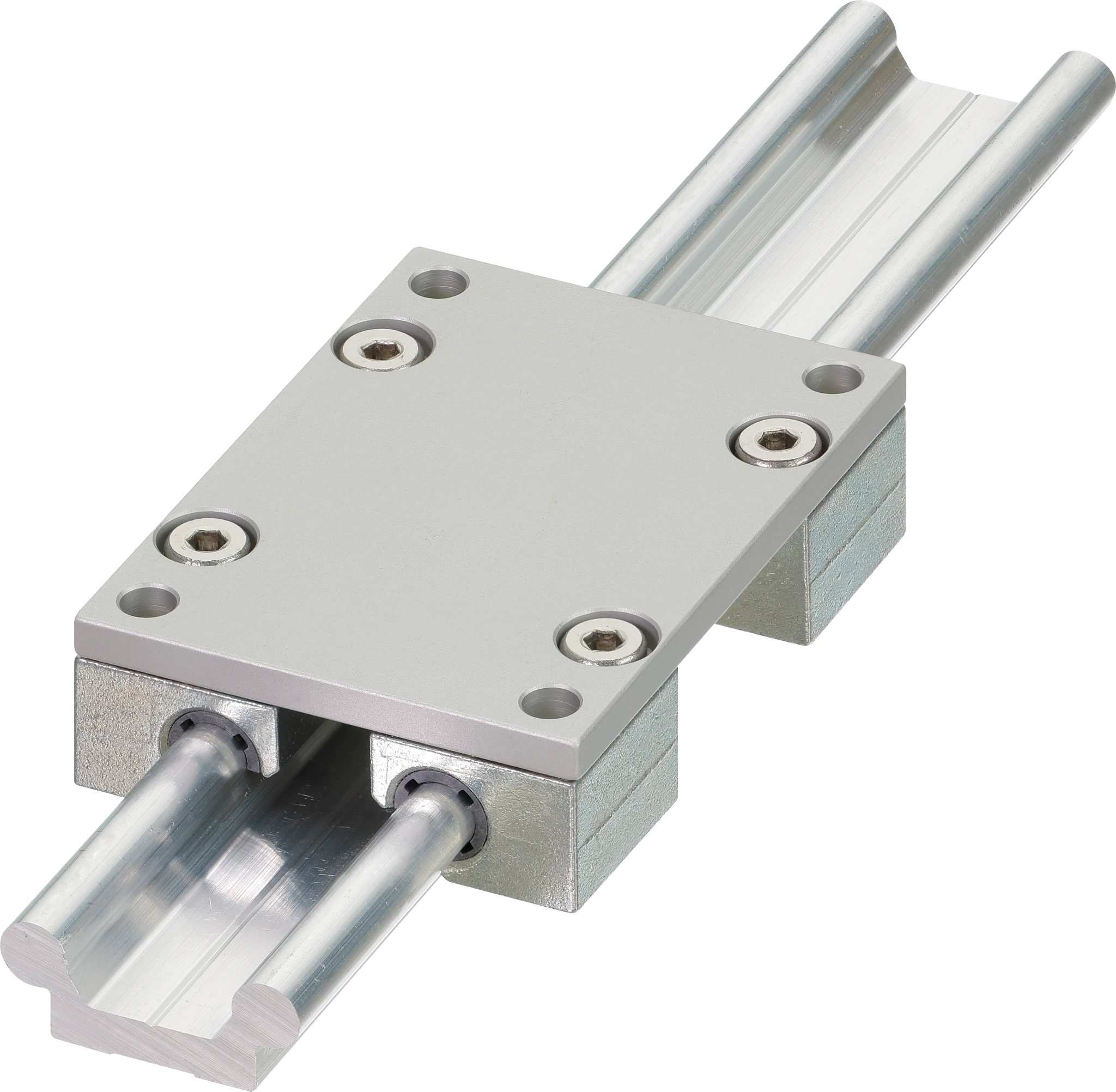

WK-06-20 – The 6 series is very small, but can do a lot

Small and strong
The igus® drylin® W linear system is an innovative, flexible system that enables all designers and anyone who undertakes private DIY projects to construct precise, reliable linear systems for a number of applications. Its clean, 100% lubrication-free functionality; quiet, smooth sliding movements; and durability in adverse environments make the igus® linear system an ideal choice for many industries and applications.

The heart of the drylin® W linear system is the dry-tech® liners made of tribologically optimised igus® high-performance polymers. Every linear bearing, every linear carriage, every linear module with a drive offers this convenience. The igus® linear system offers many rail geometries and bearing variants: a purely straight linear guide, a curved guide, and a linear module combined with drive and motor. From the drylin® W linear system elements, developers can assemble exactly the components needed to implement their ideas.

Tech up

Ready-to-install linear carriages in three lengths

Cost down

20% narrower than previous installation size (06-30)

Proof

Tested: static load capacity linear system Coy 1,680N

Sustainability

100% lubrication-free due to "sliding instead of rolling"
