drylin® N 22-40 low-profile linear guide with new solid plastic carriage

Low-profile, lightweight & durable

New low cost drylin N 40mm (width) carriage offers weight reduction (50% over the standard N40 carriage), threaded brass fittings help maintain a low profile (9.5mm), and the tribopolymer iglide J bearing material offers low friction, long lifetime as well as excellent corrosion resistance.

Reduced inertia
Durable through high-performance polymer iglide® J
Maintenance-free due to integrated solid lubricants
Connection thread in the carriage
Easy assembly

Shop drylin® N 22-40 low-profile linear guide

Tech up

Flattest linear carriage for linear guide drylin N installation size 40
Thread integrated in the linear carriage
Suitable linear rails available in silver and black, with or without holes

Cost down

cost-effective production in injection moulding
Simple assembly due to fixed and floating bearing carriages
Quick and easy installation without instructions
Storage also possible as bulk material

Proof

Service life can be calculated online
Long service life through high-performance polymer iglide® J
High corrosion resistance through linear rails with clear anodised coating

Sustainability

Very light due to 2/3rd weight saving compared to standard carriages
Emission reduction through very quiet operation and low mass inertia

Nominal width 22-40

We have developed the solid plastic carriage for this purpose
The nominal width 22-40 is intended for use in the smallest installation spaces, or when every gram of weight saving counts.

Due to the easily exchangeable design, the nominal width 22-40 can be easily exchanged or installed even in very narrow installation spaces.

The advantage of not requiring any lubricants means that one work step is eliminated.

The nominal width 22-40 will be able to flex its polymer muscles especially in furniture construction, the aircraft interior industry, laboratory automation and testing and inspection equipment.

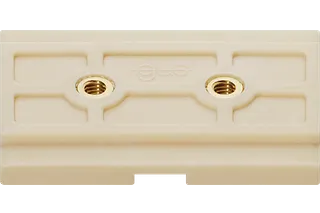

Solid polymer carriage nominal width 22-40 from igus

9.5 mm installation height
