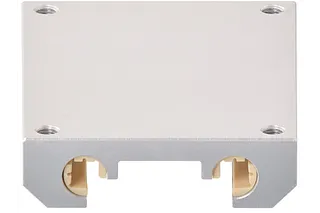

drylin® W MonoSlide: 16mm, slimmer than ever

Compact linear carriage in size 0660 compliments the modular linear system
Easy handling, easy installation, easy storage In addition to its extremely slim design of 16mm, the drylin® W MonoSlide convinces due to its practical advantages. Moreover, due to its clear anodised coating, the aluminium carriage is very light and corrosion resistant.

New slim installation size 0660
Choice of 3 lengths (60mm/80mm/100mm)
No alignment
One component (carriage incl. bearing elements)

Shop drylin® W MonoSlide

Tech up

Extremely fast installation of drylin W linear carriages on drylin W double rails
Monobloc made of aluminum for robust handling
Suitable for drylin® W profile rail WSQ-06-60
Sliding elements made from iglide® J for long-lasting operation
In three lengths, available ready to install: 60/80/100mm

Cost down

Save installation time with a ready-to-install design
No mounting or alignment necessary
Save storage space -> 1 component instead of 9 (as in the case of standard linear carriages)
Reduced design effort as PDF and CAD file available in the online shop

Proof

12% less installation height than standard
Corrosion-resistant thanks to a clear anodized coating
Tested: WWC carriage, installation size 06, load 80N, acceleration 3m/s², rail length 2,000mm, running performance 5,000km or 2.5million double strokes of 1,000mm each

drylin linear technology products are sustainable

Sustainability

Self-lubricating operation
Maintenance-free due to self-lubricating high-performance polymers from igus®
Lightweight components such as plastic and aluminum
