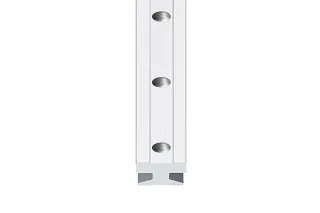

drylin® TS-CA Econ

drylin® guide rails now also available as an econ variant with clear anodized coating
drylin® T is the igus® alternative rail guide to ball circulating systems The most important connection sizes are identical, with the result that 1 to 1 replacement is possible in many cases. The advantages of drylin® linear guide systems are already convincing many users but, in future, will become increasingly important when a future-oriented linear guide has to be selected.

Absolutely self-lubricating operation
Completely clean surfaces
Very quiet due to absence of rolling elements
Easy installation

For the TW-12 Performance and TW-01 Standard adjustable carriages, we have developed the drylin® T econ clear anodized rails. A combination of the technical advantage of a consistently silver color (ideal for visible parts) with cost-effective clear anodized coating.

Shop drylin® TS-CA Econ

Tech up

drylin® T guide rails with clear anodized finish
Corrosion-resistant surface
Series 01 rails in installation sizes 15, 20, 25, 30 usable with the TW-12 Performance and TW-01 Standard guide carriages with individual clearance adjustment
Consistent silver color ideal for visible parts

Cost down

All rail installation sizes 15% more cost-effective than the hard anodized version
Connection sizes identical to those of conventional recirculating ball systems
All profiles available from stock
Millimeter accurate saw cuttings

Proof

drylin® T function can be calculated online
Clear anodized, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
Coefficient of friction and wear tested in the igus laboratory
Fraunhofer IPA-tested: drylin® TK-01-25-01, ISO Class 6 with Air Purity Class at v=1 m/sec, ISO Class 6 with Air Purity Class at v=2 m/sec, ESD Classification Level 1

drylin linear technology products are sustainable

Sustainability

66% weight saving due to use of aluminum instead of steel
Lower inertia
100% functional operation without lubrication
Self-lubricating use also in emission-critical environments
