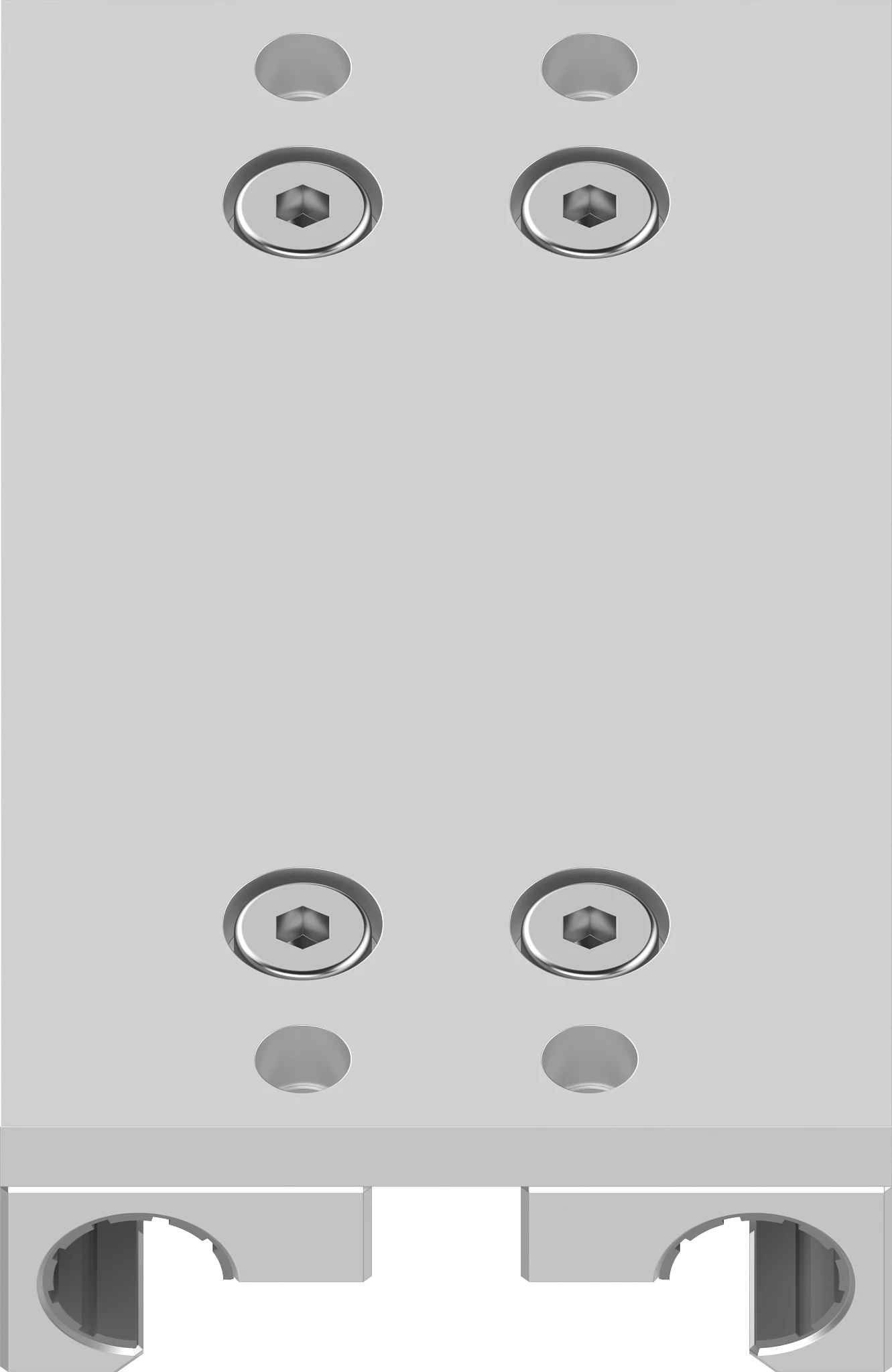

Narrow series of linear carriages

The offset of the mounting holes to the inside of the rail reduces the width of the linear carriages by up to 25%. For the narrow double rails WS-10-30, linear carriages are available in length 100mm, for the WS-16-60 in 150mm. The new carriage type extends the drylin® W design freedom with an elegant narrow linear guide.

Request here

Tech up

pre-assembled linear carriages
up to 25% narrower design
Liner made of iglidur® J200 for longest service life on aluminium rails

Cost down

Suitable for drylin® W standard rail profiles WS-10-30 and WS-16-60
usable immediately
no set-up times

Proof

Comparison of system widths: Previous combination of carriage/double rail: WW-10-30-10 with rail WS-10-30: 63mm. Combination of narrow carriage/double rail: WWS-10-30-10 with rail WS-10-30: 48mm
Savings in installation space up to 24%

Sustainability

Quiet gliding due to igus® polymers
All liners can be retrofitted
All metallic components can be reused
