Configurator for drylin® N – low-profile linear guide system NW-02-17

Ordering a complete system

Configuration in just a few steps:
1. Choose the number of carriages
2. Choose the type of carriage
3. Enter the carriage length in mm
4. Choose the carriage options
5. Choose the rail options

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

Floating bearing application

Note:
You can find detailed information in the drawings below and also on the pages listed below. You can find more precise information on the floating bearing types within the construction rules.

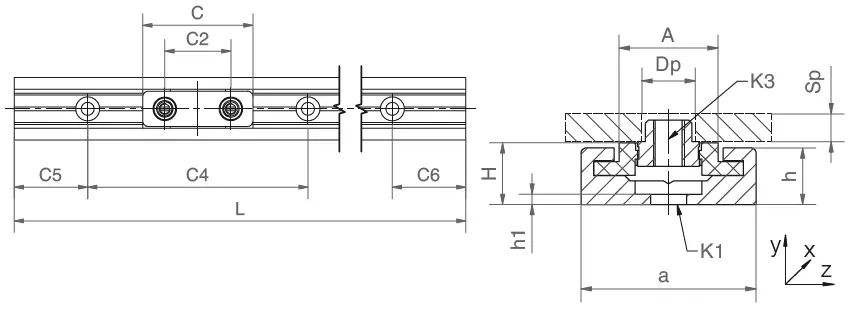

drylin® N rail + carriage drawing drylin® NW
Technical drawing drylin® NW

Dimensions and technical data

Guide rails

Part No.

L
max.

a

C4

C5
min.

C6
min.

h

h1

K1

ly
[mm²]

lz
[mm²]

Weight
[g/m]

NS-01-17(-AR)

2.000

17

60

20

49,5

5,5

0,9

Ø3,5

1.700

120

150

Guide carriages

Part No.

H
±0,35

A

C

C2

K3

Sp

Dp

Weight [g]

NW-02-17(-P)

6

9,6

20

14

M3

2,5

5,0

1,7

NW-22-17-30

6

9,6

30

18

M3

2,5

5,0

2,4

NW-22-17-40

6

9,6

40

28

M3

2,5

5,0

2,6
