Linear Screw Actuators With Low-Profile Guide Rails: drylin® SLW

drylin® SLW/SAW are lead screw-driven actuators equipped with fully-supported guide rails, offering more rigidity and resistance to twisting than shaft-guided actuators, like our HTS product line. They are high-performance, low-cost, low profile and highly flexible, and therefore are some of our most popular actuator series.

Benefits:

Fully supported rails for torsion-resistance
Lower cost than ball bearing actuators
Low-profile and low-weight
Grease-free & corrosion-resistant
Highly flexible, with many accessories and materials
Motors and drive controls available

Typical Applications:

Packaging machine format and lane adjustments
Lab machinery
CNC Machine Gantries

Shop Linear Screw Actuators with Guide Rails

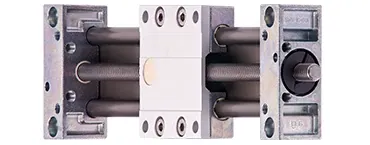

SLW - Low Cost and Compact

Suited for applications under 100RPM
Ideal for manual positioning
High Axial Load Capacity

Browse our Shop

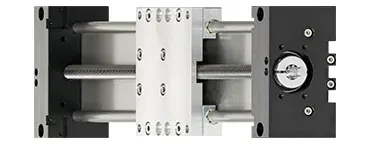

SAW - For Motorized Applications

Higher profile for better motor alignment
Ball bearing lead screw supports
For speeds up to 1,500rpm

Browse the Shop

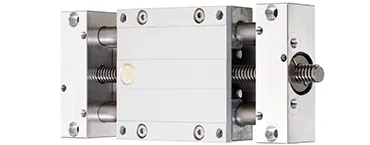

SLWE-BB - Low-Profile Motorized Applications

Up to 1,500RPM (depending on load and length)
Adjustable low clearance linear bearings
Low-profile

Browse the Shop

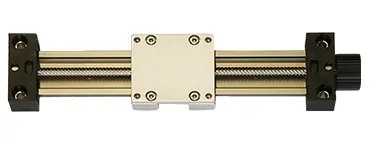

SLWS - with High Helix Lead Screws

Multiple high-pitch leads available
For faster format adjustments
Ideal for applications under 100RPM

Browse the Shop

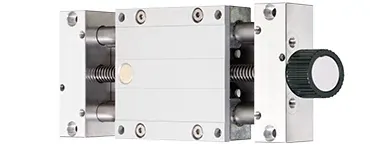

SLWE-PL - Reduced Axial and Radial Clearance

Features pre-loaded nut to remove axial play
Adjustable linear bearings offer optimizable radial clearance
Quiet with reduced lead screw vibration

Browse the Shop

SLW-ES - Compact, stainless steel

300 Series stainless steel housings, blocks & rails
Multiple nut and bearing materials including high temperature and FDA-compliant
Extreme corrosion-resistance

Browse the Shop

Linear Actuator Configurator

The drylin® linear actuator configurator is a comprehensive tool for configuring your own linear actuator, calculating service life, downloading CAD files, and placing an order.

Try our Configurator

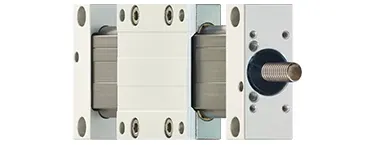

SLW-PT - with Protected/Covered Lead Screw

Multiple lead screws available
Low-profile and compact
Ideal for dirty environments

Browse the Shop

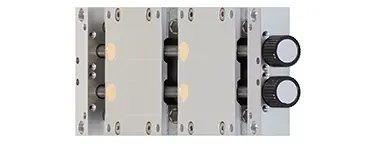

SLWT - Twin Lead Screw

Separate carriage adjustment
Ideal for format adjustments
Multiple lead screw leads available

Browse the Shop

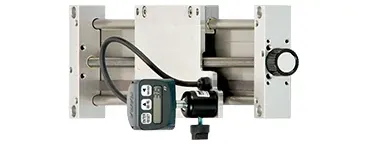

SLWM - with measuring system

Space-saving sensor integration
Battery-operated
For Accurate, repeatable positioning

Browse the Shop

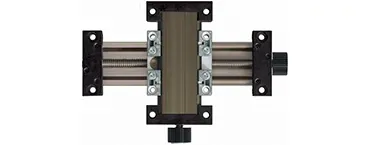

SLW - XY table

Compact
Modular and flexible

Shop SLW - XY table

SLW-ES - XY Compact, stainless solution

300 Series stainless steel housings, block & rails
Multiple nut and bearing materials including high temp and FDA-compliant
Extreme corrosion-resistance

Browse the Shop

Screw Actuators w/ Unsupported Shafts

Guided by support shafts
8mm-50mm shafts available
Dry-running

Browse the Shop

Applications for drylin SLW linear actuators

Heavy things become easy, positioning with no maintenance

In the filling systems of Fricke Abfülltechnik GmbH & Co. KG, a drylin SLW linear axis ensures that the 80 kg filling head can be easily positioned over the container.

SLW linear unit with spindle drive in medical technology

Sasyaka Engineering Services Pvt Ltd uses a linear module with spindle drive from the drylin SLW range for a conveyor belt for the pharmaceutical sector. The absence of external lubricants and the fine adjustment of the linear module gave the linear axis system from igus the contract.

Level packing and lamination

10,000 siliconized paper strips per hour - with the drylin SLW linear unit

Bernhardt Maschinenbau oHG opted for the folding and gluing machine for the SLW linear unit. The machine manufacturer wanted a self-lubricating and maintenance-free linear axis system with a long service life. The drylin SLW linear unit fulfills every requirement.
