Product range expansion of the dryspin® lead screws

New lead screw sizes

by four new dimensions
Higher efficiency and longer service life than conventional lead screws thanks to the unique dryspin® high helix lead screw technology. Corrosion-free and 100% lubrication-free and maintenance-free.

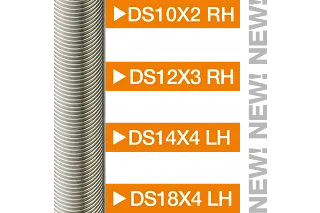

Our dryspin® lead screws are now available in the four new dimensions:
► DS10x2 RH
► DS12x3 RH
► DS14x4 LH
► DS18x4 LH

Reduce the time required for your design and optimise the lead screw technology procurement process.

Discover in the online shop
Thread size

Tech up

  • Alternative to DIN103 ​
  • Quiet operation due to standard tighter manufacturing tolerances
  • Quiet due to thread geometry
  • Up to 30% longer service life thanks to asymmetry
  • High efficiency
Thread size

Cost down

  • Online lead screw configuration tool
  • Live prices displayed
  • Lead screw machining online without CAD knowledge
  • 100% lubrication-free and maintenance-free
  • Free online tools with service life calculation
    and instant price
Proof

Proof

  • Lead screw drive service life can be calculated online
  • Tested: up to 25% less wear compared to PET+PTFE (dimension 10x3): undefined
  • Corrosion-resistant due to material AISI 304
  • Online configuration with plausibility check
Recycle

Sustainability

  • Lubrication-free operation
  • Easy to clean
  • Required length without waste
  • Long-lasting use due to patented asymmetry
  • igus® supports the circular economy of plastics and is investing in chemical recycling. More here

The new dimensions of the dryspin® high helix lead screws at a glance

DS10x2 RH
Go to dimensions
DS12x3 RH
Go to dimensions

Further important information:

Dimensions

The dimensions of the dryspin® lead screw drives

Everything at a glance and sorted by specifications
Six different types of lead screw nut made of seven different materials with individual specifications are available. Suitable lead screws are available in high helix, trapezoidal and metric threads and in stainless steel, steel and aluminium. We have clearly presented all dimensions for you.

► Diameters from 4 to 50mm
► Pitches from 0.5 to 100mm
► More than 5,000 variants in the standard range
► Wide variety of materials and designs
► Our experts will be happy to help you make your selection

Suitable lead screw nuts

Are you looking for the right lead screw nuts?

Here you will find all the necessary information
Of course, we have expanded our high-helix thread product range not only with the new lead screws, but also with the matching lead screw nuts.

► Very different materials and types
► Lubrication-free and maintenance-free operation
► Low coefficients of friction and high efficiency
► Up to 50.9% less acquisition costs compared to metallic lead screw nuts
► And many more advantages

Convince yourself of the lead screw nuts of the dryspin lead screw technology. We have summarised all the advantages and important information for you at a glance.

  • Discover the matching lead screw nuts here
    • 16x5

    The alternative to conventional trapezoidal lead screws

    More operating smoothness and less vibrations
    The new high helix thread sizes DS10x3 LH, DS14x4, and DS18x4 are ideally suited as an alternative to the trapezoidal lead screws of the same dimensions.

    The dryspin high helix lead screws offer numerous advantages:
    ► Low-noise and low-vibration operation due to rounded teeth
    ► Longer service life due to asymmetry
    ► Higher efficiency due to optimised flank angles
    ► 100% corrosion-free
    ► Self-locking
    ► And many other advantages

    Higher efficiency, longer service life

    dryspin technology

    This is what dryspin® technology can do

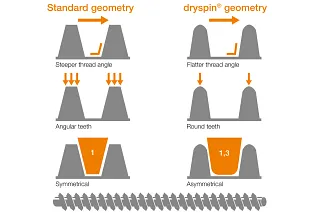

    The dryspin high helix thread technology was developed by igus in 2013 and offers numerous advantages compared to conventional high helix threads. Due to the flat thread angle, it efficiently converts the force introduced into a translational movement. With specifications and geometries matched to the plastic nut and spindles, dryspin provides an even longer service life and more efficiency for high helix threads. Due to the rounded tooth geometry, the contact area between lead screw and nut is reduced, and the lead systems operate quietly and without vibration under load.

    The larger spaces between the individual dryspin threads result in a higher proportion (factor 1.3) of tribologically optimised polymer in the threads. More wear-resistant material and higher levels of efficiency are crucial for a service life that is up to five times longer compared to conventional high helix threads.

    Try out dryspin® technology for yourself

    dryspin technology

    With the help of the free lead screw sample
    Holding a real sample in your hands is an important part of understanding your component. We will be happy to send you a sample of our dryspin lead screw drives for this purpose. We have summarised all the specifications and advantages of dryspin lead screw technology in the sample for you. See for yourself and if you have any questions, our experts will be very happy to help.

    Order online:

    Thread size

    Send a contact request:

    Contact request

    Obtain more information:

    USP picture
