Scara Robot Cable Management: Flexible & Made from Durable Polymers

Corrugated tube dynamically reinforced on the SCARA robot

High-speed applications, such as SCARA robots, can cause unsupported corrugated tubes to whip from side to side while the robot is in motion. Help stabilize them with e-rib, which is a highly engineered plastic “rib” that fills the joints of your existing corrugated tubes. It easily clips on and off and can be paired with mounting brackets for reinforcement at each end. We offer e-rib in a nominal width of 29mm with additional sizes coming soon. The sizes are independent of the corrugated tubing manufacturer. Please note that current lead time is 2-4 weeks.

David Sandiland presents the Scara cable solution

The energy supply for Scara robots
Individually adaptable for different Scara models
Includes the energy supply system from axis 1 to the ball screw
Currently the nominal width of the Scara cable solution (inside) is available with 29mm
Nominal widths 23mm and 36mm are being planned
Spare parts supply is guaranteed by the ordering of individual parts

Scara cable solution shop

What is behind the Scara cable solution?

Modular system, easy to retrofit
Can be delivered as harnessed system
Custom design for easy adjustment to different SCARA types
Safe guidance of cables and hoses

Easy maintenance
High running performance
All components are individually replaceable
Less downtime

Since 2016, 50 EPSON SCARA robots have been in continuous operation at a German motor vehicle manufacturer
From 20.08.2020 to 1.03.2021 , more than 2,500,000 test cycles were completed in the igus® test laboratory

Have your e-rib recycled as
part of the igus Chainge recycling program at the end of its life cycle. Irrespective of the manufacturer. You will receive a voucher for: Chainge recycling program

AR for SCARA Cable Solution

Augmented reality for SCARA Cable Solution

Use augmented reality capabilities and project the EPSON T3 402S SCARA robot onto its future production site with the SCARA Cable Solution or just into the office to make planning even more realistic.

Simply scan the QR code and use the 3D model

Start AR desktop version

Configure SCARA Robots in 3 Steps

Configure SCARA robots quickly and easily

Select your SCARA robot using the drop-down menu or quick search.
Then set the fixed point of your application.
We will send you an exploded view and a parts list that you can order directly, or you can just request an quotation.

Configure now

Scara cable solutions questions and answers

- inner hose diameter of 29mm

The e-rib gives the corrugated hose stability
End connection reinforcement at both ends of the system

- Please contact us directly via the enquiry button

Request Scara cable solution as readychain

The SCARA Cable Solution consists of three elements adapted to the SCARA robot

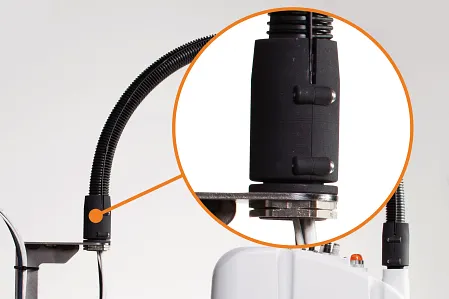

Fixed Point Connection

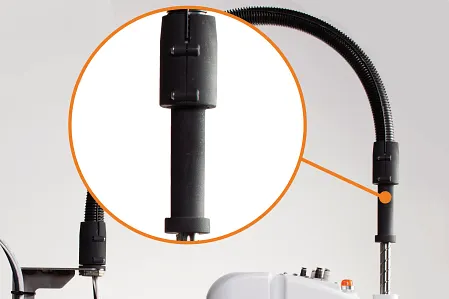

Ball Screw Connection

Corrugated Tube + E-Rib

Example of the structure of part numbers: SCARA EPSON G6 553s

Fixed Point Connection

Part number, Fixedend — CLICK TO ENLARGE

Ball Screw Connection

Part number, moving end — CLICK TO ENLARGE

Corrugated Tube + E-Rib

Epson

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.16.97.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.1
45° Ball Screw Connection: TR.SCS.29.01.16.97.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.16.97.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.1
45° Ball Screw Connection: TR.SCS.29.01.16.97.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.16.97.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.1
45° Ball Screw Connection: TR.SCS.29.01.16.97.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.200.1
45° Ball Screw Connection: TR.SCS.29.01.20.94.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.48.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.2
45° Ball Screw Connection: TR.SCS.29.01.25.48.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.48.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.2
45° Ball Screw Connection: TR.SCS.29.01.25.48.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.48.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1500.0

Optional Components

Fixed End Connection Adapter: TR.919.696.2
45° Ball Screw Connection: TR.SCS.29.01.25.48.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.48.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1500.0

Optional Components

Fixed End Connection Adapter: TR.919.696.2
45° Ball Screw Connection: TR.SCS.29.01.25.48.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.16.48.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: Contact Sales
45° Ball Screw Connection: TR.SCS.29.01.16.48.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1200.0

Optional Components

Fixed End Connection Adapter: Contact Sales
45° Ball Screw Connection: TR.SCS.29.01.20.40.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.20.40.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.20.40.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.20.40.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1500.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1500.0

Optional Components

Fixed End Connection Adapter: TR.919.696.3
45° Ball Screw Connection: TR.SCS.29.01.25.35.02.0

Fanuc

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.40.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1700.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Denso

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1200.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.25.35.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1400.0

Optional Components

Fixed End Connection Adapter: Contact Sales

KUKA

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1000.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Ball Screw Connection: TR.SCS.29.01.20.94.01.0
Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1300.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Omron

Bill of Materials

Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1100.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1100.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Bill of Materials

Fixed Point Connection: TR.SCS.29.02.40.01.0
Corrugated Tube + E-Rib: TR.SCS.29.1400.0

Optional Components

Fixed End Connection Adapter: Contact Sales

Free samples and downloads

Contact Us

Questions or product information? Please contact:

David Sandiland

Robotics and Automotive Industry Sales Manager

+1 705 313 2574 Email

Customer Service:
Monday to Friday from 8 am - 8 pm

Online:
24h
