Telescopic rail, preloaded

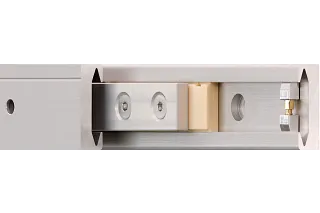

Telescopic rail with prism preload

Telescopic rail with prism preload
The defined pre-tension is the heart of the drylin® N prism guide. And we now also use this pre-tensioning mechanism with selectable constant displacement forces in the new prismatic telescopic rail. The result is a rich, clearance-free telescoping feel, without annoying rattling noises. Due to the narrow design, the telescopic rail is also suitable for small installation spaces.

Tech up with igus news

Tech up

  • Rattle-free telescopic rail due to spring pre-tensioning mechanism
  • Constant drive forces with various preload options
  • With 27mm width very narrow type for 27mm groove
  • Quiet, with rattle-free spring suspensions
Cost down with igus news

Cost down

  • Ready-to-install solution with extension lengths from 150-500mm
  • Configurable in steps of 50mm as full-extension, partial-extension or over-extension runner
  • 100% maintenance-free as no lubricants required
  • Can be ordered online from 1 piece
evidence from igus news

Proof

  • Tested: linear up to four times quieter than metal bearings
  • Tested: corrosion resistance, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
recycling with igus news

Sustainability

  • 100% lubrication-free and maintenance-free operation
  • Very quiet through sliding motion instead of metal balls
  • No contamination in the application environment
