New housing for narrow constructions

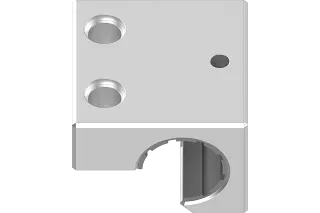

The new WJ200UMS bearing housing in installation sizes 10 and 16 are more compact than ever. The screw holes of the new linear housing design are located on the inside of the rail. This reduces the system width of the linear system by 20%. When used in parallel with double rails, this means that more installation space is available on both sides or the design can be made narrower.

Request here

Tech up

Narrow system width
No linear carriage run-offs
Choice of 6 liners

Cost down

corrosion-resistant, anodised aluminium
suitable for round drylin® W single or double rails

Proof

Comparison of system widths: Previous bearing/single rail combination: WJ200UM-01-16-AL with rail WS-16: 52mm. Narrow bearing combination bearing/single rail: WJ200UMS-01-16-AL with rail WS-16: 42mm
Savings in installation space up to 20%

Sustainability

re-usable linear housings
100% lubrication-free operation
maintenance-free due to self-lubricating igus® polymers
