Applications

First, let’s review some specific applications that could benefit from cost-effective continuous-flex cables. Of course, every application has its own set of unique parameters, but generally a less expensive continuous-flex cable can be used in the following areas:

1. Machine tools Certain types of machine tools, such as water jet and laser cutters, move at slower speeds which subject cables to a lower duty cycle. Also, the configuration of the cable carrier is sometimes short enough where the top section does not need support. Therefore, as long as the cable has an adequate bend radius, an industrial, higher-cost continuous-flex cable is not needed. Instead, a medium-duty continuous-flex cable that is able to withstand light abrasion and exposure to oils is ideal.
2. Packaging and handling systems Depending on the industry, some packaging and handling machines are required to run at reduced speeds. Similar to a machine tool application, a cost-effective continuous-flex cable that is able to withstand light abrasion and occasional exposure to oils is ideal.
3. Small gantry cranes Typically gantry cranes are used to lift and transport smaller items around a working area in a factory or machine shop. Where a larger bridge or overhead cranes may require industrial, higher-cost continuous-flex cables, gantry cranes can often use a cost-effective continuous-flex cable because of their shorter length of travel and slower operational speeds.
4. Car washes An automatic car wash does not put undue stress on cables, as they handle only light to medium loads. While the cables still need to be rated for continuous flexing, a less expensive continuous-flex cable that is suitable for outdoor use in a range of temperatures can be used.

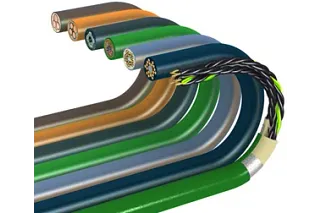

Cost-effective Continuous-flex Cables

Now that we have discussed potential applications for cost-effective continuous-flex cables, let’s review the features and benefits of the cables themselves. Below are some examples of cost-effective continuous-flex cables for medium-duty applications offered by igus®. Based on pricing and performance features, these cables would be considered “economy”, while the higher priced, more robust cables also offered by igus® would be considered “standard” or “premium”. For an overview of igus®' entire line of chainflex® cables, visit our website.
