e-chain® E4/4 cable carriers for long distances
System E4/4 cable carriers are ideal for long travels up to 1,312 feet. They also work well in free-hanging, side-mounted applications. The side links are designed to create an overlapping, multipurpose grip, which increase stability for heavier side loads. E4/4 can withstand 50 percent greater push-pull forces than the next comparable energy chain cable carrier design and is resistant to dirt, debris, and corrosion. System E4/4 is available with special rollers for extremely long travels up to 2,625 feet and can also come in a special, conductive plastic - called igumid ESD - for use in ESD applications.

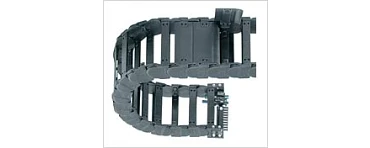

E4/4: The side links are designed to create an overlapping, multipurpose grip, which increases stability for heavier loads.

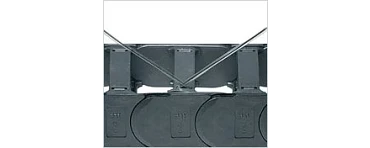

Push down the groove in the cross bar with a screwdriver and prize against the clamp.

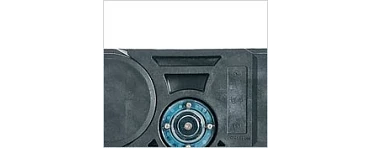

Also available with roller wheels for extremely long travels, upon request.
Shop E4/4
With crossbars every link, snap-open along both sides - For specially demanding applications
Series 2828
Inner height hi: 1.26 (32 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 2.48 - 11.81 (63 - 300 mm)
Pitch: 2.2 (56 mm)
Series 3838
Inner height hi: 1.65 (42 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 2.95 - 13.78 (75 - 350 mm)
Pitch: 2.64 (67 mm)
Series 4040
Inner height hi: 2.2 (56 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)
Series 5050
Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 39.37 (150 - 1000 mm)
Pitch: 3.58 (91 mm)
With crossbars at every other link, snap-open along both sides - For almost all applications
Series 2928
Inner height hi: 1.26 (32 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 2.48 - 11.81 (63 - 300 mm)
Pitch: 2.2 (56 mm)
Series 3938
Inner height hi: 1.65 (42 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 2.95 - 13.78 (75 - 350 mm)
Pitch: 2.64 (67 mm)
Series 4140
Inner height hi: 2.2 (56 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)
Series 5150
Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 39.37 (150 - 1000 mm)
Pitch: 3.58 (91 mm)
E-Tube, snap-open along both sides - completely closed, excellent cable protection
Series R7728
Inner height hi: 1.26 (32 mm)
Inner widths Bi: 1.97 - 11.81 (50 - 300 mm)
bending radii R: 3.94 - 11.81 (100 - 300 mm)
Pitch: 2.2 (56 mm)
Series R7838
Inner height hi: 1.65 (42 mm)
Inner widths Bi: 1.97 - 11.81 (50 - 300 mm)
bending radii R: 4.92 - 13.78 (125 - 350 mm)
Pitch: 2.64 (67 mm)
Series R8840
Inner height hi: 2.2 (56 mm)
Inner widths Bi: 2.95 - 18.19 (75 - 462 mm)
bending radii R: 5.91 - 19.68 (150 - 500 mm)
Pitch: 3.58 (91 mm)
Series R9850
Inner height hi: 3.15 (80 mm)
Inner widths Bi: 2.95 - 18.19 (75 - 462 mm)
bending radii R: 7.87 - 39.37 (200 - 1000 mm)
Pitch: 3.58 (91 mm)
Features and benefits:
- For long travels up to 1,312 feet (without rollers)
- Best solution for unsupported, side-mounted travels
- Excellent for demanding indoor or outdoor environments involving extreme conditions, dirt, or debris
- High torsional rigidity
- ESD version available
- Roller links available for extremely long travels up to 2,625 feet
- Large kit of accessories
Typical applications:
- Cranes: RTG, quayside cranes, many more
- Compost plants
- Construction equipment
- Gypsum plants, concrete plants, chemical plants
- Heavy machinery
- ESD applications
- Steel works
- Shipyards
- Welding plants
- ESD: with special material igumid ESD (available upon request.)
- Side-mounted, unsupported applications possible
- High torsional rigidity
- System E4/4 approved for long travels
