SnapChain

TE 14/26 & TZ 14/26

Contact an expert
snapchain

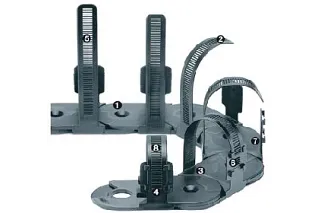

1. Quickly mount cable packets in bundles
2. Loops can be adjusted and modified anytime
3. Well-suited for short lengths, ideally 5 - 10 links
4. Low-cost alternative to complex cable shears
5. TE version snap-open along outer radius - TZ version snap-open along inner radius
6. Shapely design
7. Can bend in 1 or 2 directions (RBR)
8. Available in 2 sizes

When to use the SnapChain series?

  • When easy filling is required
    When a cost-effective e-chain® is required
    When low installation costs are required
    When a simple solution is required
    With low travel frequency

Example SnapChain

Example SnapChain

snapchain diagram
snapchain diagram

Model TE14/TZ14
Pitch = 30.5 mm
Links/m = 33(1006.5 mm)
Chain length = s/2 + K

Model TE14/TZ14
Pitch = 30.5 mm
Links/m = 33(1006.5 mm)
Chain length = s/2 + K
