Many cables in a very confined space

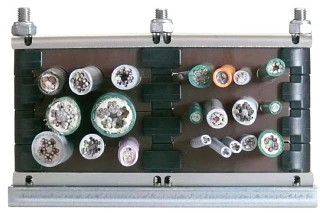

CFB: Modular, plastic strain relief connector system for mounting on C-profile
Plastic joining links can be used to provide strain relief for cables in extremely confined spaces using adapted PU building blocks. This modular plug-in system allows the provision of customer-specific strain relief options.
- 2 options available
- Fast assembly with bolted connection
- Can be installed in the mounting bracket or in front of the energy chain
- Manufacturing with no minimum order quantity
- Cost-effective and efficient
Industries: General mechanical engineering, machines of all kinds
Industries:General mechanical engineering, machinery of all kinds
| Parts list description | Article | Quantity | |
|---|---|---|---|
| 1 = holding block outside | CFB20-1 | N x 2 | Inquiry (link broken) |
| 2 = terminal strip | 901-881-1-XXX | 2 | Inquiry (link broken) |
| 3 = threaded bolt with plate | 901-825-2-LLL | 2 | Inquiry (link broken) |
| 4 = hexagonal nut M8 | MAT0040012 | 2 | Inquiry (link broken) |
| 5 = C profile (part of the KMA) | 92-42-XXX | 1 | Inquiry (link broken) |
| 6 = strain relief block | Customer specific | 1 | Inquiry (link broken) |
| Parts list description | Article | Quantity | |
|---|---|---|---|
| 1 = holding block outside | CFB20-1 | N x 2 | Inquiry (link broken) |
| 2 = holding block inside | CFB20-2 | N | Inquiry (link broken) |
| 3 = terminal strip | 907-825-1-XXX | 2 | Inquiry (link broken) |
| 4 = threaded bolt with plate | 907-825-2-LLL | 3 | Inquiry (link broken) |
| 5 = hexagonal nut M8 | MAT0040012 | 3 | Inquiry (link broken) |
| 6 = C profile (part of the KMA) | 92-42-XXX | 1 | Inquiry (link broken) |
| 7 = strain relief block | Customer specific | 1 | Inquiry (link broken) |
| 8 = strain relief block | Customer specific | 1 | Inquiry (link broken) |
