e-drum - compact without slip ring
Can be rolled onto a drum flexibly – cables are protected
A modular system enables flexible adaptation to the use in question. The modular system of the e-drum enables the user to create a compact and durable guidance and drum-reeling system for energy, data, air and fluids.
Tech up
- Uninterrupted energy supply without slip ring
- Also for data, fluids and air
- Constant tensile strain
- Space-saving
- Extraction lengths up to 21m
- Cable diameters up to 24mm
Cost down
- Protection of the cables/hoses due to closed energy chain
- Long service life
- Cost-effective in case of repair
- Easy replacement of cables/hoses
Proof
- Test set-up at igus. To the test
Sustainability
- No additional copper needed
- Less raw material required due to part repair instead of total replacement

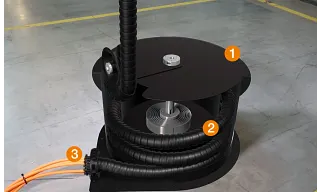

This is how the e-drum is designed
The design study is mainly characterized by its closed system and compact structure. On the inside, there is a triflex R e-chain that enables three-dimensional movements of the cables in any direction. Due to the special design, no slip ring is needed to wind the triflex R onto a reel and the cables are securely protected in the closed e-chain.
- Closed housing
- Three-dimensional triflex R energy chains
- chainflex cables
