New accessories for the E4Q
Expanding the E4Q modular kit

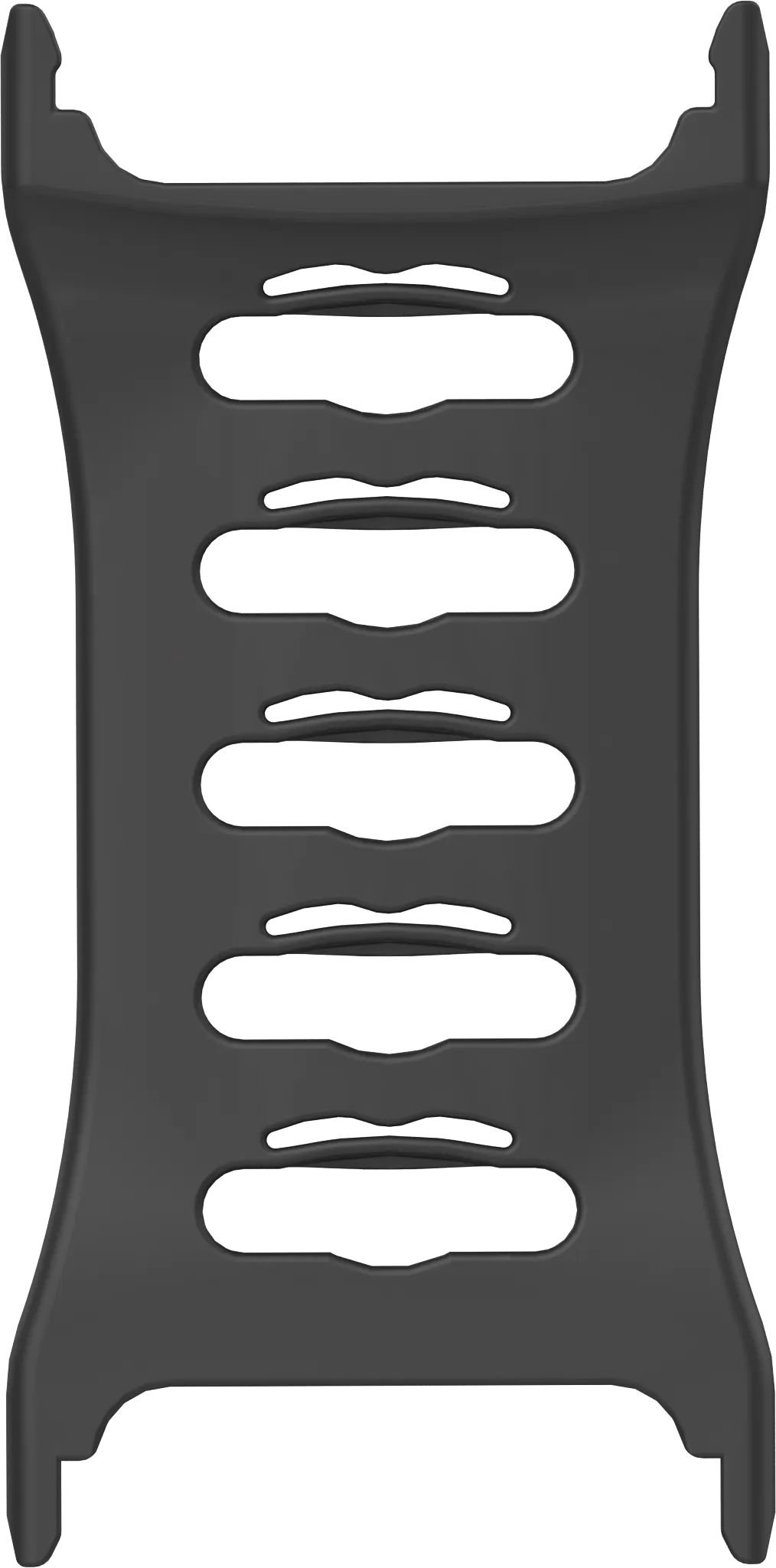

Guide many thin cables easily – Hi.9 separators for the E4Q.58
The new, asymmetrical Hi.9 separator can now be used for simple guidance of many thin cables in E4Q energy chains. Narrow chambers can be easily formed by offsetting insertion by 180°. The e-chain® is also very easy to open on one side, even when many separators are installed.
Technical data
| Part No. for series | Asymmetrical separators | Universal middle plates | Universal side plates | Universal separators | Snap-in shelves (X = mm) |
|---|---|---|---|---|---|
| E4Q.34 / H4Q.34 | 34.9 | 34.21 | 34.22 | 34.23 | S428.XXX |
| E4Q.44 / H4Q.44 | 44.9 | 44.21 | 44.22 | 44.23 | S428.XXX |
| E4Q.58 / H4Q.58 | 58.9 | 58.21 | 58.22 | 58.23 | S428.XXX |
| E4Q.82 / H4Q.82 | 82.9 | 82.21 | 82.22 | 82.23 | S428.XXX |

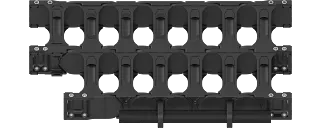

Extend the e-chain easily – extension link for the E4Q.58
The extension link can be used to easily extend an existing e-chain configuration in order to guide a large number of cables or especially heavy cables in one energy chain.

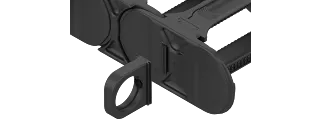

Simple guidance parallel to the chain – TUB link for the E4Q.58
Guide additional cables, hoses, or corrugated tubes parallel to the existing e-chain. Retrofitting is easy – just install PMACLIP supports. Sizes from 17-48mm.
Tech up
- Expanded variability for many small cables
- Easily guide additional cables and/or implement a higher fill weight
- For laterally guided cables and hoses
Cost down
- The e-chain® interior is optimally used
- The extension link makes an additional e-chain® unnecessary
- Quick replacement
Proof
- Combining the advantages of the tried-and-tested separators Hi.3 (guide thin cables) and Hi.2 (simple opening with a secure stability) that are in use in millions of applications
- Further optimization based on the tried-and-tested E4 extension links, which are already used in numerous applications
- TUB product range for E4.1 and E4.1L systems successfully used in numerous applications
Sustainability
- Effective interior use reduces material consumption
- Optimal use of existing resources
- Have your energy chain recycled at the end of its life cycle with the igus chainge recycling program. No matter what manufacturer.
The special design of the E4Q energy chain
E4Q series energy chains have been developed to offer the best possible solution for unsupported and long travels. Based on the robust E4.1 energy chain standard that has been proven for over 12 years, the new series brings a long service life and a high degree of modularity.
