Clean ribbon cable e-skin® flat for cleanroom applications

>

Modular principle for ISO class 1 applications – flat cable guidance system with stranded structure
► Modular and compact design
► Replace cables quickly
► IPA classification: EN ISO Class 1 to DIN 14644-1 for e-skin® flat, Report IG2102-1212
► UL-certified complete system
► High reliability due to coordinated stranded structure CFCLEAN
► Available from stock

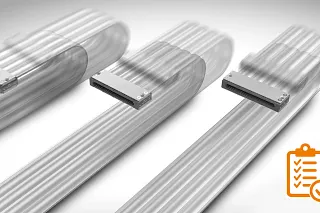

e-skin flat single pods configurator

Configure and request cable guidance system e-skin flat in just a few steps.

Configure now

The e-skin flat cable guidance system, in combination with the CFCLEAN chainflex solution, represents a logical further development of the commercially available PTFE trackless cables for cable guidance in flat panel display (FPD) and semiconductor production, and in the production of OLEDs as well as in medical technology. The strengths of the PTFE trackless cables have been improved and the disadvantages eliminated. The undefined is the result of this further development work.

Selection guide for energy supply in cleanroom

Find and request the ideal cleanroom energy supply for you in just 30 seconds

Find cleanroom energy supply now

Further development through e-skin flat and CFCLEAN

• Prototypes from stock
• No minimum order quantity
• Flexible to application changes through simple replacement of CFCLEAN or e-skin flat pods
• Length and width can be changed as required
• Resources-friendly and service-friendly due to easy interchangeability of each individual element

Disadvantages of trackless cables (ribbon cables)

• Long prototype phase, due to complex manufacturing processes
• High prototype costs
• No longer flexibly changeable after completion
• In case of service, the complete trackless cable must be replaced
• Ecologically and economically unsound due to waste of resources in case of damage

e-skin flat with stranded elements

• Highly abrasion-resistant welded film to protect the stranded elements and minimise abrasion
• No outer jacket in order to reduce weight and outer diameter
• Extremely flexurally resistant braiding of copper wires with 90% optical coverage for maximum electromagnetic compatibility
• Special TPE insulation for highly dynamic applications
• Special strand structure for maximum service life

Trackless cables (ribbon cables)

• Multi-layer jacket that holds individual stranded cores together:
• Thin PTFE outer film
• PUR inner layer
• Thin PTFE outer film
• An enclosed, non-separable system
• Stranded cores are inseparable from each other
• Individual elements not interchangeable, but entire systems

Since 2003, in new developments of cleanroom products, igus® has been co-operating with the Stuttgart Fraunhofer Institute for Production Technology and Automation (IPA). The latest achievement of this collaboration: a cleanroom laboratory in Cologne.

Specialising in the development and manufacture of components for automation technology and a leader in the field of rotary indexing tables, the company Weiss GmbH wanted to find a cable lead-through to the middle of a tool whereby the lead-through could hold two sensor cables and two hoses, each with a diameter of four millimetres. The solution: the  flat cable guidance system e-skin flat from igus. Service life over 57 million double strokes.
