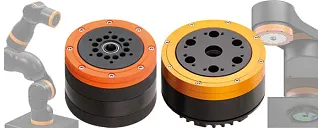

Cost-effective and compact: gearbox system for service robotics
ReBeL®: fully integrated single joints
With the ReBeL® series, igus® introduces for the first time low-cost robotics strain wave gears, with which 6 DOF robots, i.e. with six axes, can be implemented. With the modular ReBeL gearbox system, you can undefined. What is special about ReBeL gearboxes is that the fully integrated individual gearbox contains a motor, a control system, and an encoder in a single component.

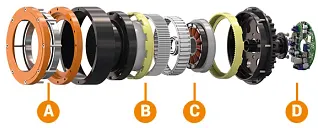

The ReBeL strain wave gear is fundamentally different from the previous robolink® worm gears: instead of stepper motors, it uses light, brushless direct current motors (BLDC motors). Add the motor controller, and you have a fully integrated strain wave gear. This type of motor is usually used in service robotics. The gearbox is constructed as follows:
- A: output with encoder and mounting flange
- B: tribologically optimised polymer strain wave gear
- C: brushless DC motor (external rotor)
- D: CAN-BUS motor driver board
Improve technology
- 25% lighter than conventional strain wave gears thanks to igus® high-performance polymers
- fully integrated individual gearbox with motor, control system and encoder
- Greater capacity thanks to the low weight of the multi-axis kinematic elements
Cost down
- Start right away with robot kinematics thanks to fully integrated strain wave gears
- Lightweight and thus energy-efficient
Proof
- The outer contour and most of the mechanical components are made of polymers and are therefore cost-effective and lightweight.
Sustainability
- Low Cost Automation products are completely maintenance-free
- Lightweight components
- igus® supports the circular economy of plastics and is investing in chemical recycling. Learn more about this topic at Plastic2Oil.

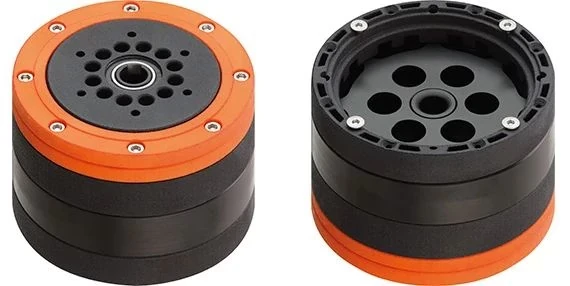

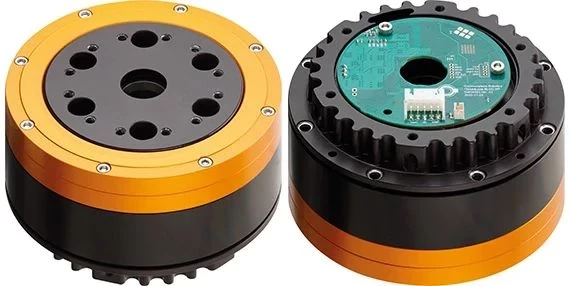

Two installation sizes, one idea: fully integrated strain wave gear
