Series Z200-2

Here you can configure your Energy Chain System® individually. All entries will be copied to the Bill of Materials shown at the bottom of this page.

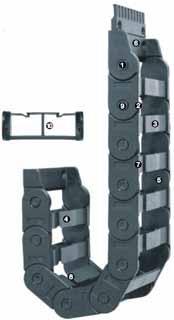

Series Z200/Z200-2 - can be filled in the inner radius

1. Large pins - long service life
2. Limited torsion tolerance
3. Version E: To be filled in the external radius
4. Version Z: To be filled in the internal radius
5. Cable-friendly interior
6. Integratable strain relief
7. Dirt-repellent exterior
8. Very easy to fill - cabels only have to be pushed in
9. The patented push-button principle holds the links together
10. Interior separation with 2-chamber system possible

When to use Series Z200-2

If filling is required without opening and closing lids
If price is an issue
If quiet operation is required

When not to use Series Z200-2

Not suited for applications with very high loads and with long unsupported travel
Series 2400
If single-extrusion crossbars are required
Series 2400

Installation dimensions


Part No. :
Inner width Bi [inch]:
Bi1 [inch]:
Bi2 [inch]:
Bending radius R [inch]:
Travel distance S [ft]:
Fixed end dM [ft]:
Chain length^** [ft]:
Number of chain links :
External width Ba [inch]:
H^* [inch]:
D [inch]:
K [inch]:
Hi [inch]:
Ha [inch]:
Weight per link [oz.]:
Weight [lbs/ft]:
* The required installation clearance is HF = H + 1.57 (40 mm) (in the case of 1.68 lbs/ft (2.5 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.

A=Moving End , B=Fixed End
Pitch: 1.81 (46 mm) per link
Links per ft: 7 (22/m)
Travel: S
Chain length = S/2 + K

Unsupported length

Dependency of the unsupported length on the additional load
X axis: Unsupported length in ft FLB/FLG
Y axis: Additional load in lbs/ft
Lower scale: Length of travel S in ft
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

2 options mounting brackets

2 options and 5 bending radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Product range

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator

Mounting brackets

1. Option 1 "pivoting"

2. Option 2 "locking"

unassembled	assembled

Recommended for unsupported and gliding applications

For narrow installation ratios

Strain relief with clip-on tiewrap clamps

Variable pivot angle for a flexible installation

Various fastening options (pivoting) of the E-Chain® on the fixed end and/or moving end through flexible installation of the mounting bracket.


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

unassembled	assembled

Recommended for hanging and standing applications

For extreme accelerations and high speeds

When the space is restricted to the extent of the dimension H^F

Various fastening possibilities (locking) of the E-Chain® on the fixed end and/or moving end through flexible installation of the mounting bracket.


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [ft]	32,81 (10 m)
standing (max.) [ft]	4,92 (1,5 m)
max. side-mounted, unsupported [ft]	1,64 (0,5 m)
circular	with reworking

Material of chain links	igumid NB
Min. permissible temperature [°F]	-40 (-40 °C)
Max. permissible temperature [°F]	176 (80 °C)
Gliding speed (max.) [fpm]	590,55 (3 m/s)
Max. gliding speed [ft/s²]	32,81 (10 m/s²)
Speed FLG max. [fpm]	3937,01 (20 m/s)
Speed FLG max. [ft/s²]	656,17 (200 m/s²)
Speed FLB max. [fpm]	590,55 (3 m/s)
Speed FLB max. [ft/s²]	19,69 (6 m/s²)
Flammability class of chain link	VDE 0304 IIC UL94 V2
