Lead screws and nuts with high helix thread
Up to a 100 mm linear travel per revolution. Oil-free and wear resistant
For quick adjustments as an alternative to pneumatics or belt drives.
Diameter: 10 and 18 mm from stock
Self-lubricating
Wear resistant for maximum service life
Nuts material: iglide® J plastic
p = lead
L= length
|
Part No.: |
| Part No. lead screws | Diameter | Pitch | max. length | Material | ||
|---|---|---|---|---|---|---|
| PTGSG10x12RES | 10 | 12 | 2000 | 1.4021 | Upon request |  |
| PTGSG10x50RES | 10 | 50 | 2000 | 1.4021 | Upon request | |
| PTGSG18x100RES | 18.8 | 100 | 2000 | 1.4021 | Upon request | |
| More about selected part: | ||||||
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
||||||

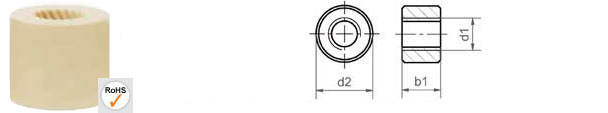

Leadscrews, cylindrical
|
Part No.: |
|
| d1 [inch]: | |
| d2 [inch]: | |
| b1 [inch]: | |
| Part No. Nuts | d1 | d2 | b1 | lead | Material | ||
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | ||||
| JSR2215T10x12 | 10 | 22 | 15 | 12 | 1.4021 | Upon request | |
| JSRM-2215TR10x50 | 10 | 22 | 15 | 50 | 1.4021 | Upon request | |
| JSRM-3027TR18x100 | 18 | 30 | 27 | 100 | 1.4021 | Upon request | |
| JSLM-2215TR10x12 | 10 | 22 | 15 | 12 | - | Upon request | |
| JSR2215T10x50 | 10 | 22 | 15 | 50 | - | Upon request | |
| JSR3027T18x100 | 18 | 30 | 27 | 100 | - | Upon request | |
| More about selected part: | |||||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||
)
|

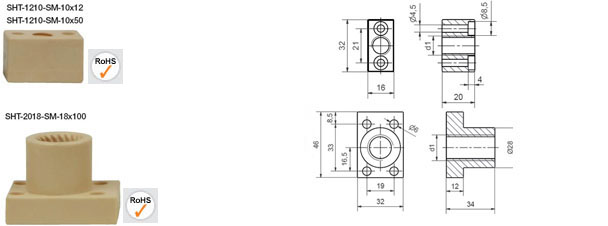

Part No.: |
|
| d1 : | |
| Part No. Nuts | d1 | Pitch | Material | ||
|---|---|---|---|---|---|
| [mm] | |||||
| HTS2010SM10x12 | 10 | 12 | SHTS-12 | Upon request | |
| HTS2010SM10x50 | 10 | 50 | SHTS-12 | Upon request | |
| HTS2018SM | 18 | 100 | iglidur® J | Upon request | |
| More about selected part: | |||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||
