Anti-backlash* thread nuts

Anti-backlash thread nuts
Anti-backlash* thread nuts

Lead screw nuts with reduced axial clearance.

Continuously self-adjusting

Self-lubricating and quiet

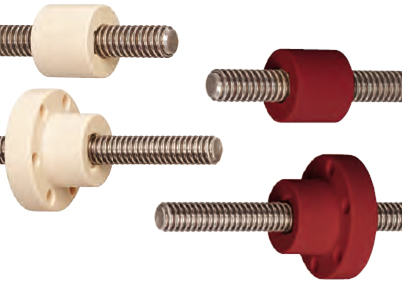

Sleeve and flange series available

Material: iglide® J


Industries: Packaging, medical, semiconductor industry, laboratory equipment

*Backlash refers to the axial clearance between the lead screw and nut, which affects precision when travel is reversed. Anti-backlash nuts are designed to mechanically reduce this clearance throughout their lifetime.



Part No.:
d1 [inch]:

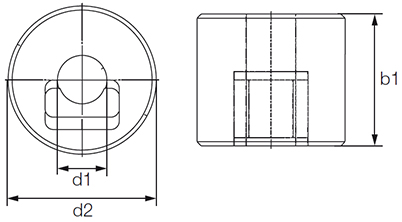

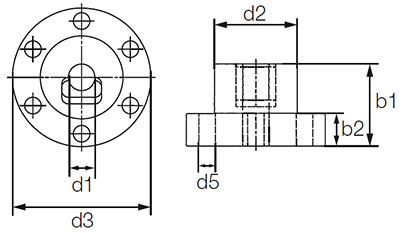

Part No. d1 d2 d3 d4 d5 b1 b2 TR-d1 x P max. stat. F axial
  [mm] [mm] [mm] [mm] [mm] [mm] [mm]   [N]
 JSR2220A10x2 10 22 - - - 20 - TR 10 x 2 840 Upon request
 JSR4036A18x4 18 40 - - - 36 - TR 18 x 4 2700 Upon request
 JSR5048A24x5 24 50 - - - 48 - TR 24 x 5 4800 Upon request
 JFR2525A10x2 10 25 42 34 5 25 10 TR 10 x 2 1160 Upon request
 JFR2835A18x4 18 28 48 38 6 35 12 TR 18 x 4 2890 Upon request
 JFR3244A24x5 24 32 55 45 7 44 12 TR 24 x 5 4890 Upon request
More about selected part:
3D-CAD Sample request PDF Quote request Price list myCatalog
